Expression-Based Cell Classification

Identify cell populations by marker expression thresholds.

---

Overview

classify_by_threshold() classifies cells as "high" or "low" expressers based on one or more marker genes. For multiple markers, it computes a metagene score that captures joint expression, then finds a threshold separating the two populations.

Use cases:

• Identify oncogene-high tumor cells from a gene panel
• Define marker-positive populations (e.g., CD8+ T cells)
• Create cell groups for downstream spatial domain analysis

---

Why Metagenes?

Single-gene thresholds are sensitive to noise and dropout. A metagene combines information across multiple related markers, producing a more robust signal.

SpatialCore uses the shifted geometric mean by default:

\[ \text{score} = \left( \prod_{i=1}^{n} (x_i + 1) \right)^{1/n} - 1 \]

This approach:

• Requires all markers to be elevated for a high score (multiplicative)
• Handles zeros gracefully with the +1 shift
• Preserves interpretability (score of 0 when expression is low)

For additive combinations, use metagene_method="arithmetic_mean".

---

Threshold Methods

Method	Best For	How It Works
gmm	Most data	Fits 2-component Gaussian mixture, classifies by posterior probability
ks	Sparse data	KS-inspired approach, robust to zero-inflated distributions

The GMM method uses a probability_cutoff (default 0.3) — cells with P(high) > cutoff are classified as high expressers.

---

Workflow Example

This example identifies cells with elevated oncogene expression (MET, ERBB2, KRAS), then creates spatial domains from the classified population.

Step 1: Run the Classifier

import scanpy as sc
from spatialcore.stats import classify_by_threshold

# Load spatial data
adata = sc.read_h5ad("xenium_lung_cancer.h5ad")

# Classify by oncogene metagene
adata = classify_by_threshold(
    adata,
    feature_columns=["MET", "ERBB2", "KRAS"],
    metagene_method="shifted_geometric_mean",
    threshold_method="gmm",
    column_prefix="oncogene",
    plot=True,
)

Output columns added to adata.obs:

Column	Description
oncogene_score	Metagene score (continuous)
oncogene_probability	P(high) from GMM
oncogene_cluster	0 = low, 1 = high

Step 2: View Diagnostic Plot

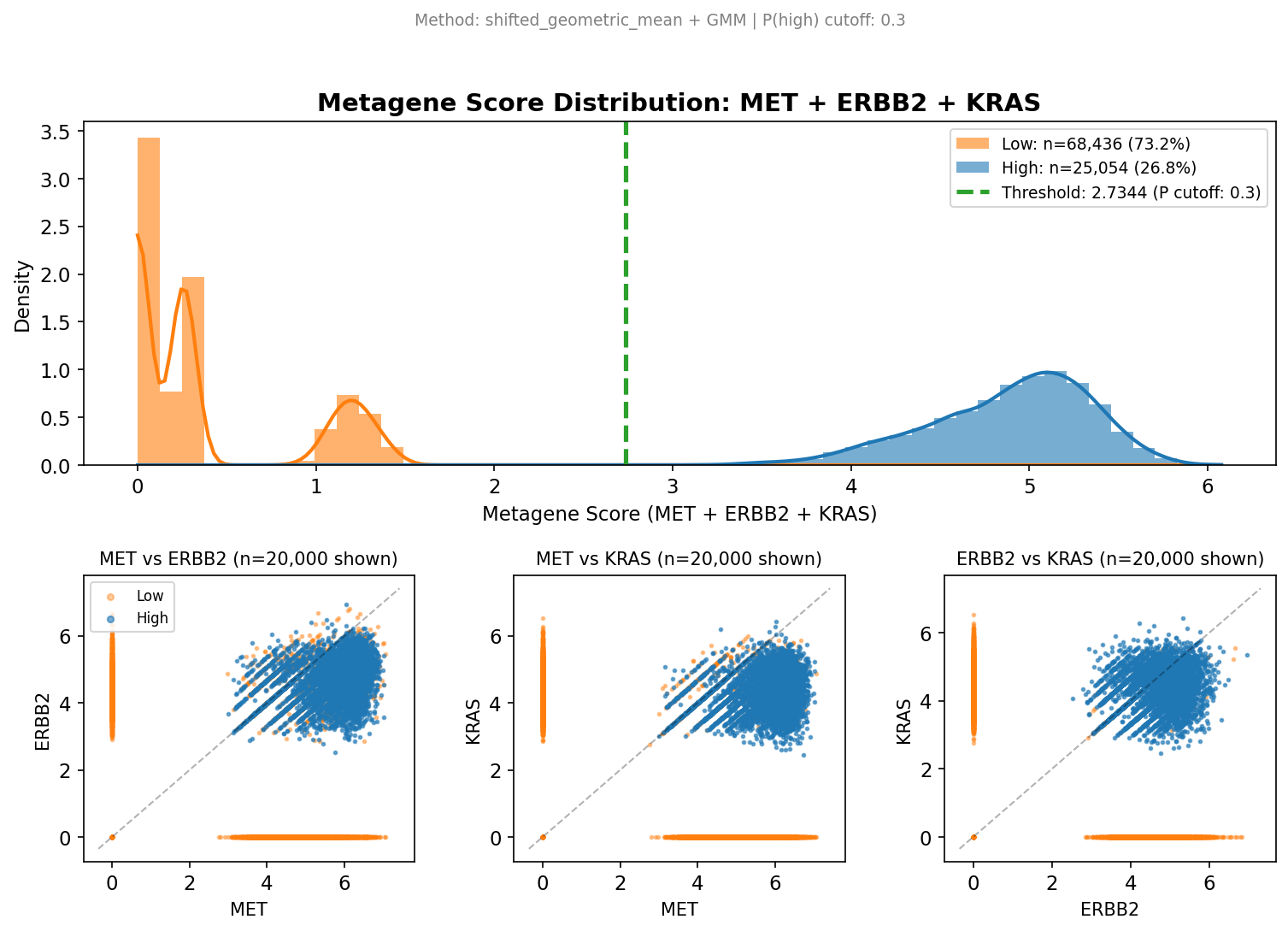

The classifier generates a diagnostic plot showing the score distribution and gene-gene relationships:

The histogram (top-left) shows the metagene score distribution with the threshold line. The scatter plots show pairwise gene expression colored by cluster assignment.

Step 3: Visualize Spatial Distribution

import matplotlib.pyplot as plt
import numpy as np

# Subsample for visualization
np.random.seed(42)
idx = np.random.choice(adata.n_obs, size=20000, replace=False)
adata_sub = adata[idx]

# Plot metagene score
fig, ax = plt.subplots(figsize=(10, 10))
scatter = ax.scatter(
    adata_sub.obsm["spatial"][:, 0],
    adata_sub.obsm["spatial"][:, 1],
    c=adata_sub.obs["oncogene_score"],
    cmap="viridis", s=2, alpha=0.7
)
plt.colorbar(scatter, label="Metagene Score")
ax.set_aspect("equal")
ax.invert_yaxis()
plt.show()

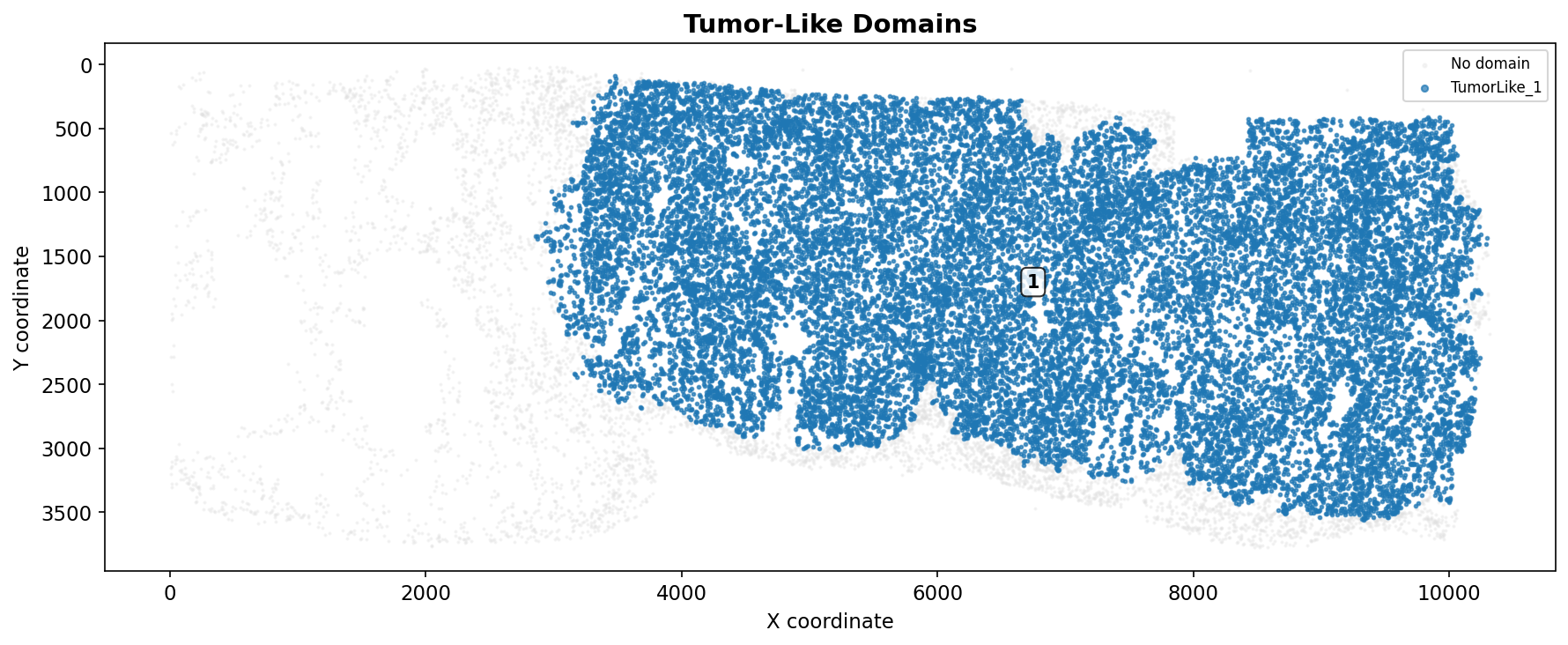

Step 4: Create Spatial Domains

Feed the classifier output to make_spatial_domains() to create contiguous tissue regions:

from spatialcore.spatial import make_spatial_domains

# Annotate tumor-like cells from classifier
adata.obs["tumor_like"] = adata.obs["oncogene_cluster"] == 1

# Create spatial domains
adata = make_spatial_domains(
    adata,
    filter_expression="tumor_like",
    domain_prefix="TumorLike",
    platform="xenium",
    output_column="tumor_domain",
    min_target_cells_domain=5000,  # Merge small regions
)

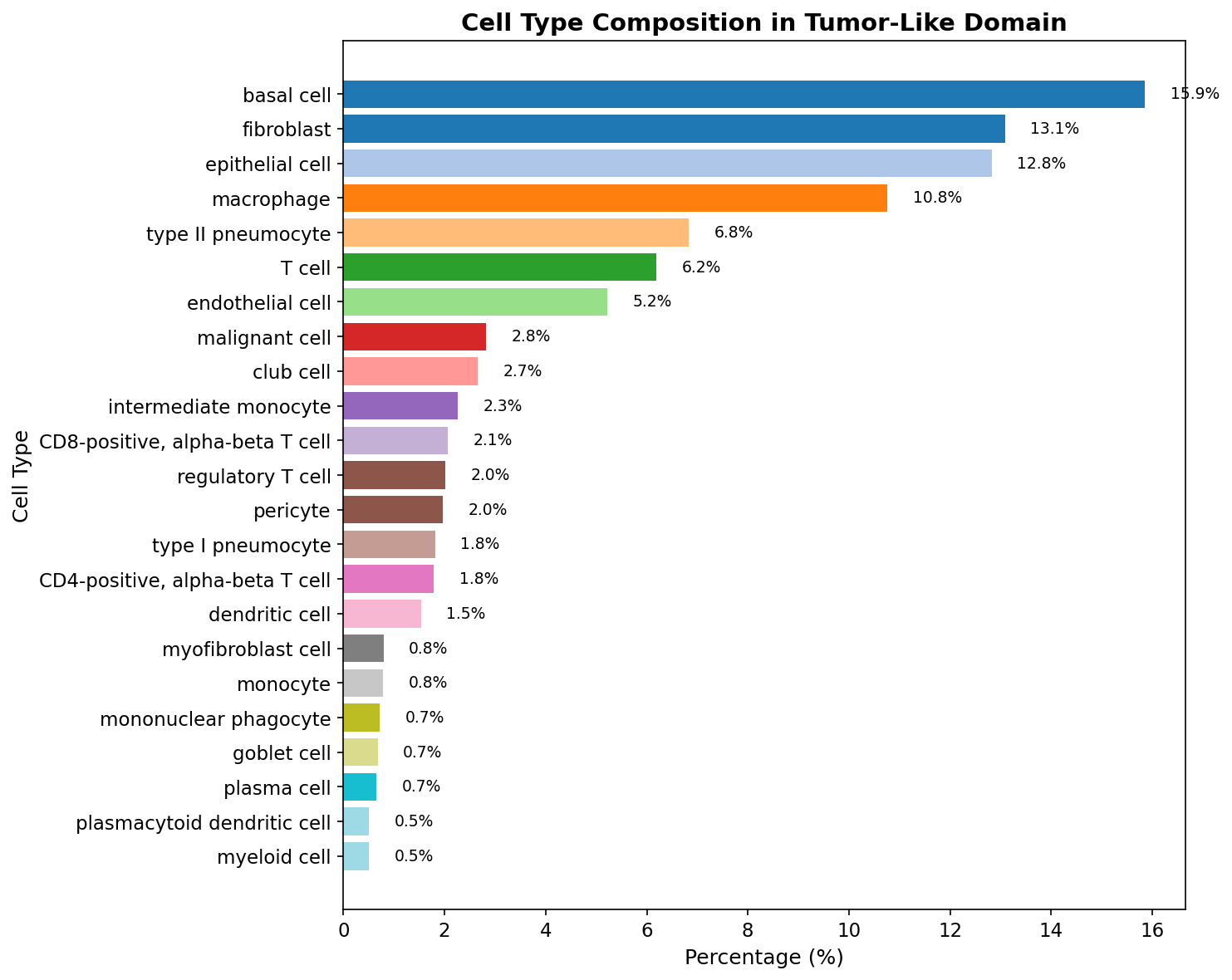

Step 5: Analyze Domain Composition

import pandas as pd

# Get cell type composition within domain
domain_mask = adata.obs["tumor_domain"].notna()
celltype_counts = adata.obs.loc[domain_mask, "cell_type_ontology_label"].value_counts()
celltype_pct = (celltype_counts / celltype_counts.sum()) * 100

# Filter to cell types > 0.5%
celltype_pct = celltype_pct[celltype_pct > 0.5].sort_values(ascending=True)

# Plot
fig, ax = plt.subplots(figsize=(10, 8))
ax.barh(celltype_pct.index, celltype_pct.values)
ax.set_xlabel("Percentage (%)")
ax.set_ylabel("Cell Type")
plt.tight_layout()
plt.show()

---

Single Gene Classification

For a single marker, the classifier works the same way — it just skips the metagene step:

adata = classify_by_threshold(
    adata,
    feature_columns=["CD8A"],
    threshold_method="gmm",
    column_prefix="cd8",
)

# Result: cd8_cluster = 1 for CD8+ cells

---

Sparse Data (KS Method)

For highly sparse markers with many zeros, use the KS method:

adata = classify_by_threshold(
    adata,
    feature_columns=["RARE_MARKER"],
    threshold_method="ks",
    column_prefix="rare",
)

The KS method is more robust to zero-inflated distributions where GMM may struggle to fit two clean components.

---

API Reference

classify_by_threshold(
    adata,
    feature_columns,
    metagene_method="shifted_geometric_mean",
    threshold_method="gmm",
    probability_cutoff=0.3,
    column_prefix="threshold",
    output_dir=None,
    plot=True,
    copy=False,
)

Parameters:

Parameter	Type	Description
adata	AnnData	Annotated data matrix
feature_columns	list	Gene names or obs columns to use
metagene_method	str	"shifted_geometric_mean", "arithmetic_mean", "pca_first"
threshold_method	str	"gmm" or "ks"
probability_cutoff	float	P(high) threshold for GMM (default: 0.3)
column_prefix	str	Prefix for output columns
output_dir	Path	Directory to save diagnostic plots
plot	bool	Generate diagnostic plot
copy	bool	Return copy instead of modifying in place

Returns: AnnData with {prefix}_score, {prefix}_probability, {prefix}_cluster columns.

---

Data

Data

This vignette uses the Xenium Human Lung Cancer dataset.

• 93,490 cells, 518 genes
• Platform: 10x Genomics Xenium
• Public access: 10x Genomics Datasets
