Spatial Statistics

Spatial autocorrelation statistics identify genes with non-random spatial distributions. SpatialCore provides four functions covering univariate and bivariate analysis at global and local scales.

Data

Dataset: CosMx Colon (366,938 cells) Public access: Nanostring CosMx datasets

---

Overview

Statistic	Scope	Question Answered
Global Moran's I	Tissue-wide	Which genes cluster spatially?
Local Moran's I	Per-cell	Where are the hotspots and coldspots?
Global Lee's L	Tissue-wide	Which gene pairs co-localize?
Local Lee's L	Per-cell	Where do two genes co-express?

Global statistics produce a single value summarizing the entire tissue. Use them for feature selection (e.g., finding spatially variable genes).

Local statistics decompose the global measure to each cell. Use them to identify specific regions driving the pattern.

---

Global Moran's I

Moran's I measures spatial autocorrelation for a single variable. It ranges from -1 to +1:

Value	Pattern	Interpretation
I > 0	Clustered	Similar values near each other
I ≈ 0	Random	No spatial structure
I < 0	Dispersed	Dissimilar values near each other

Spatially Variable Gene Discovery

Run Global Moran's I on highly variable genes to identify those with spatial structure:

import scanpy as sc
from spatialcore.spatial import morans_i

# Load data
adata = sc.read_h5ad("cosmx_colon.h5ad")

# Get highly variable genes
sc.pp.highly_variable_genes(adata, n_top_genes=50, flavor="seurat_v3")
hvg_genes = adata.var_names[adata.var["highly_variable"]].tolist()

# Compute Global Moran's I
adata = morans_i(
    adata,
    genes=hvg_genes,
    n_neighbors=50,
    n_permutations=99,
)

# Results stored in adata.uns["morans_i"]
results = adata.uns["morans_i"].sort_values("I", ascending=False)
print(results.head(10))

global_morans_i_top10_bar	global_morans_i_top6_spatial

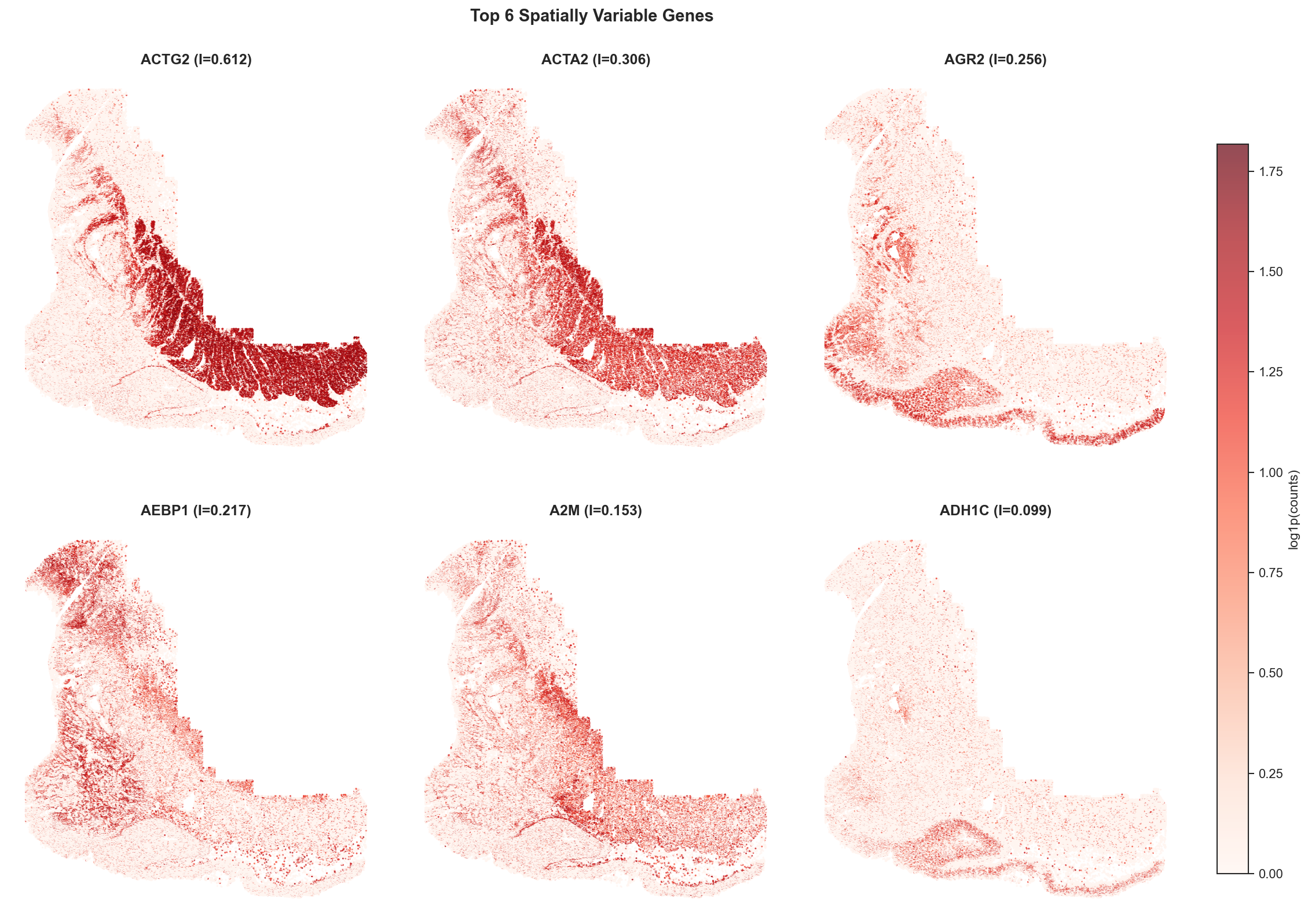

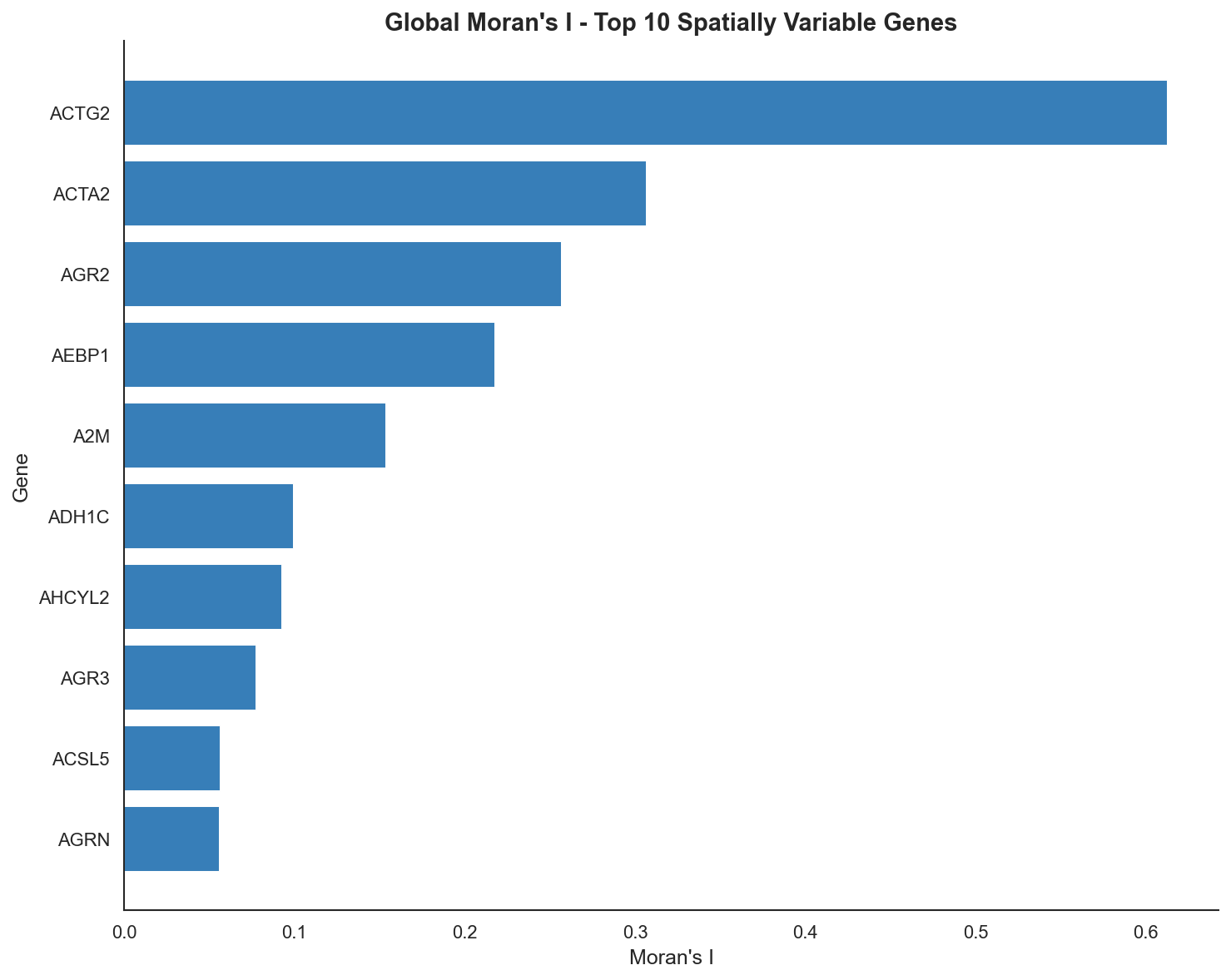

Top 10 genes ranked by Moran's I	Spatial expression patterns of top 6 genes

---

Local Moran's I (LISA)

Local Indicators of Spatial Association decompose the global statistic to each cell. For each cell i:

\[I_i = z_i \times \text{lag}_i\]

Where \(z_i\) is the standardized expression and \(\text{lag}_i\) is the weighted average of neighbors.

LISA Quadrants

Each cell is classified based on its value and its neighbors' values:

Quadrant	Cell	Neighbors	Interpretation
HH	High	High	Hotspot
LL	Low	Low	Coldspot
HL	High	Low	High outlier
LH	Low	High	Low outlier
NS	-	-	Not significant

Hotspot Detection

from spatialcore.spatial import local_morans_i

# Compute Local Moran's I for EPCAM (epithelial marker)
adata = local_morans_i(
    adata,
    genes=["EPCAM"],
    n_neighbors=50,
    n_permutations=99,
    fdr_correction="fdr_bh",
    alpha=0.05,
)

# Results stored in adata.obsm
# - local_morans_I: per-cell Local I values
# - local_morans_quadrant: HH/LL/HL/LH/NS classification
# - local_morans_p_adj: FDR-corrected p-values

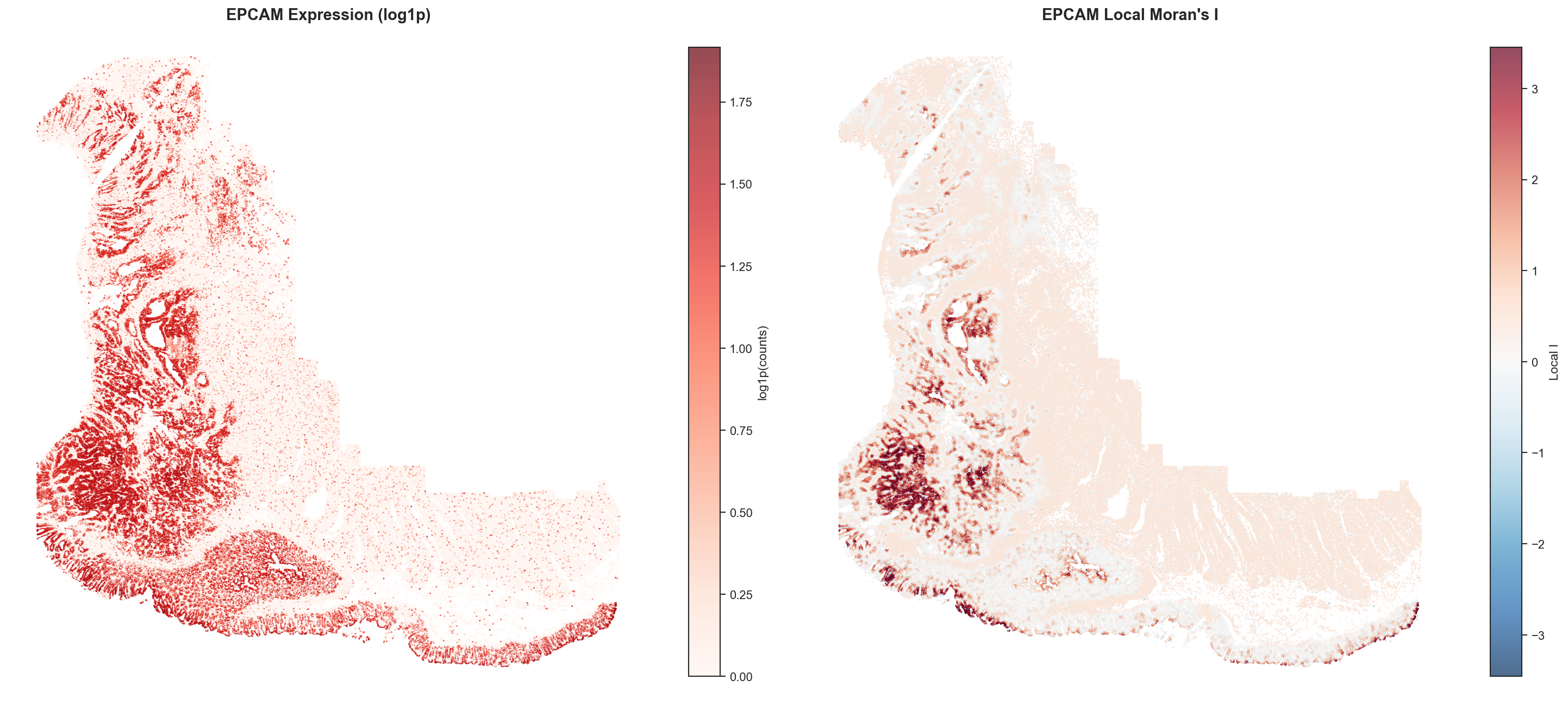

Left: Raw EPCAM expression. Right: Local Moran's I values. Red regions indicate clustering of high-expressing cells (hotspots); blue indicates clustering of low-expressing cells (coldspots).

---

Global Lee's L

Lee's L extends spatial autocorrelation to two variables simultaneously. It measures whether genes X and Y show correlated spatial patterns:

Value	Pattern	Interpretation
L > 0	Co-localization	Both high or both low together
L ≈ 0	Independent	No spatial relationship
L < 0	Exclusion	High X where Y is low

Co-localization Analysis

from spatialcore.spatial import lees_l

# Define gene pairs to test
gene_pairs = [
    ("CD79A", "MS4A1"),   # B cell markers
    ("EPCAM", "KRT8"),    # Epithelial markers
    ("CD3D", "CD8A"),     # T cell markers
]

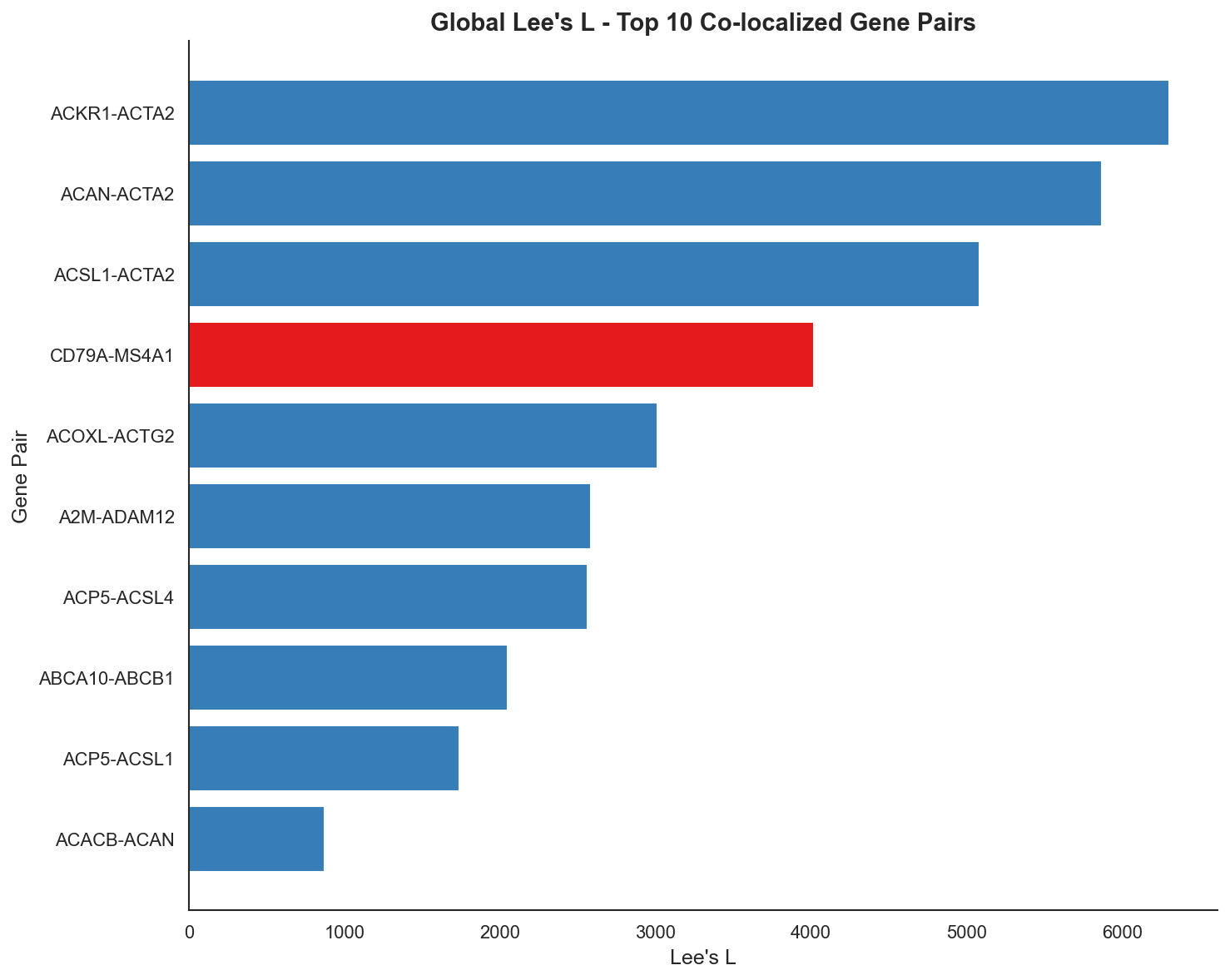

# Compute Global Lee's L
results = lees_l(
    adata,
    gene_pairs=gene_pairs,
    n_neighbors=50,
    n_permutations=99,
)

# Returns list of dicts with gene_x, gene_y, L, p_value
for r in results:
    print(f"{r['gene_x']}-{r['gene_y']}: L={r['L']:.3f}, p={r['p_value']:.3f}")

---

Local Lee's L

Local Lee's L identifies cells where two genes show strong bivariate spatial patterns.

Bivariate Quadrants

Quadrant	Gene X	Gene Y	Interpretation
HH	High	High	Co-expression hotspot
LL	Low	Low	Co-expression coldspot
HL	High	Low	X dominates
LH	Low	High	Y dominates

B Cell Marker Co-localization

CD79A (B cell receptor) and MS4A1 (CD20) are canonical B cell markers expected to co-localize:

from spatialcore.spatial import lees_l_local

# Compute Local Lee's L
adata = lees_l_local(
    adata,
    gene_pairs=("CD79A", "MS4A1"),
    n_neighbors=50,
    n_permutations=99,
)

# Results stored in adata.obs
# - CD79A_MS4A1_lees_l: per-cell Local L values
# - CD79A_MS4A1_quadrant: HH/LL/HL/LH/NS classification

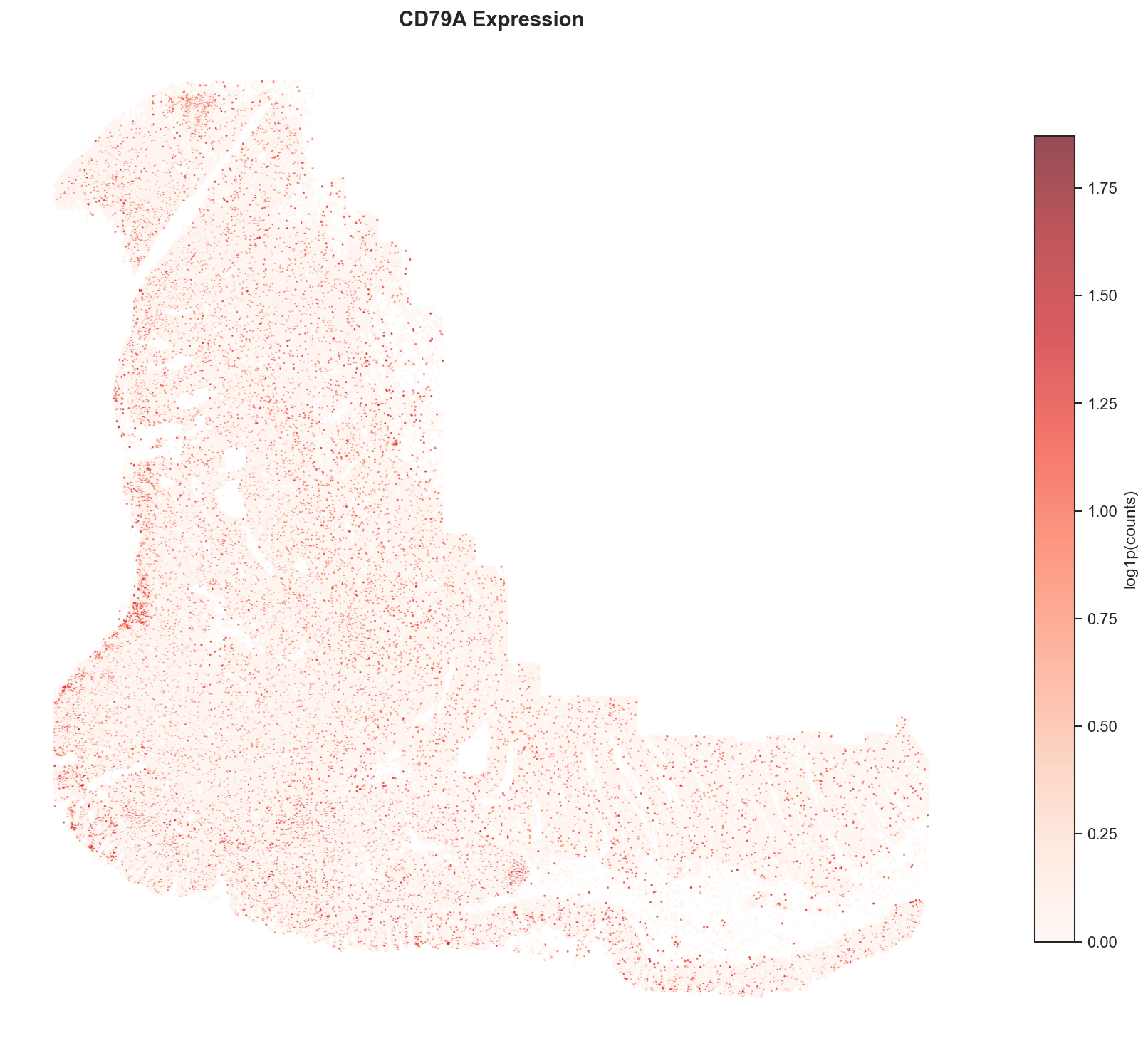

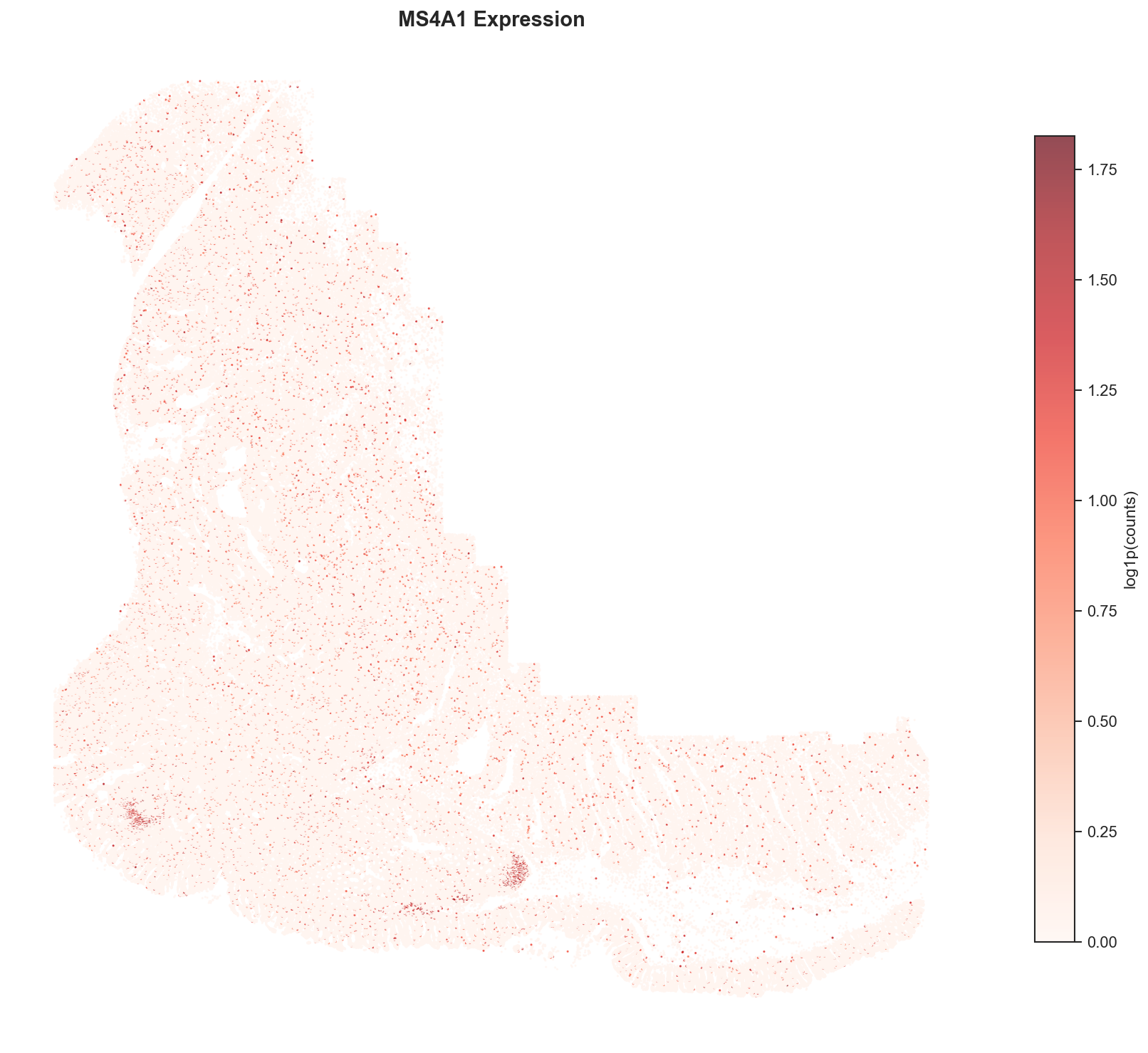

CD79A Expression	MS4A1 Expression

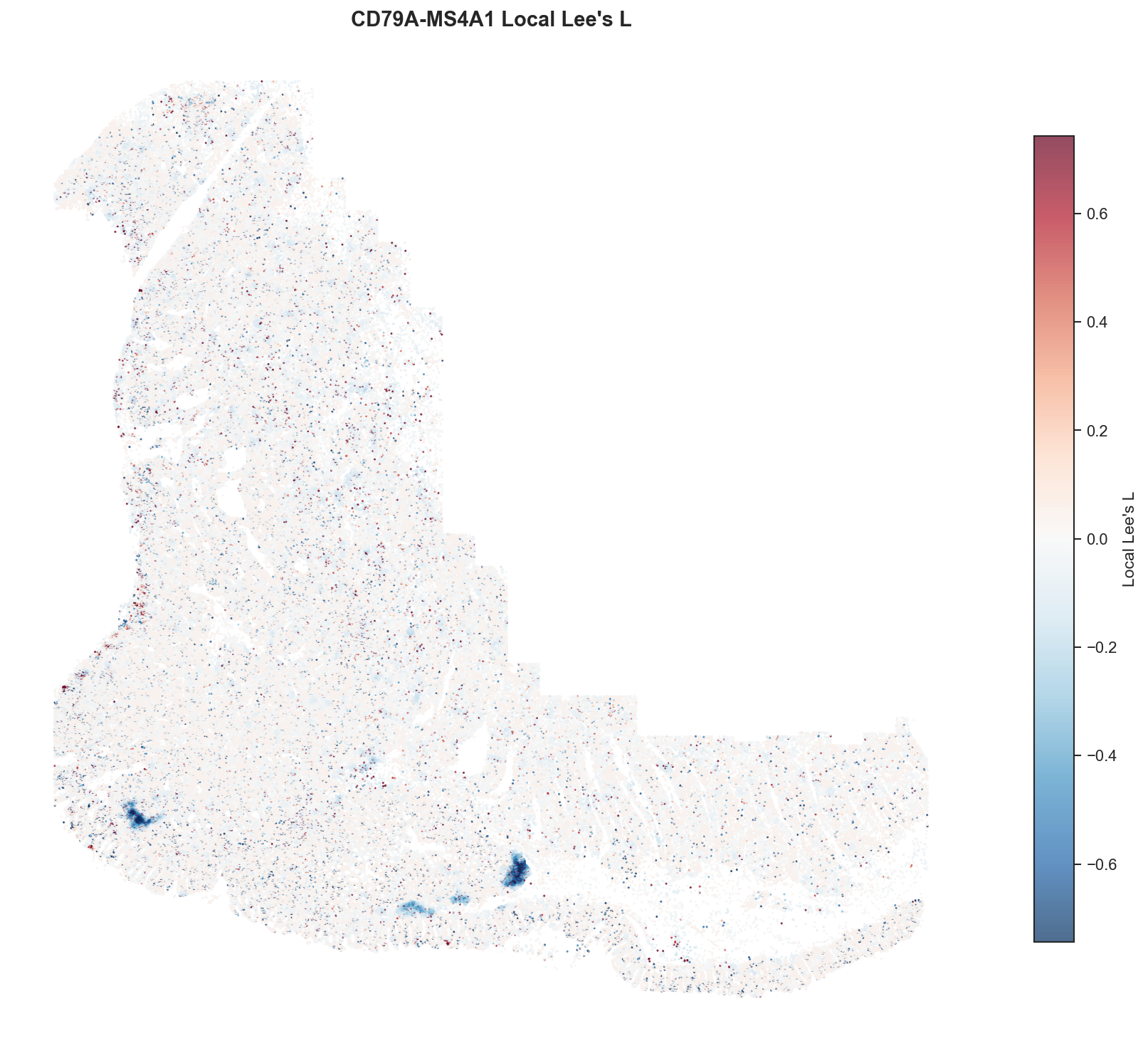

Local Lee's L	Quadrant Classification

Red regions in the Local Lee's L plot indicate strong positive bivariate correlation (HH quadrant in the classification).

---

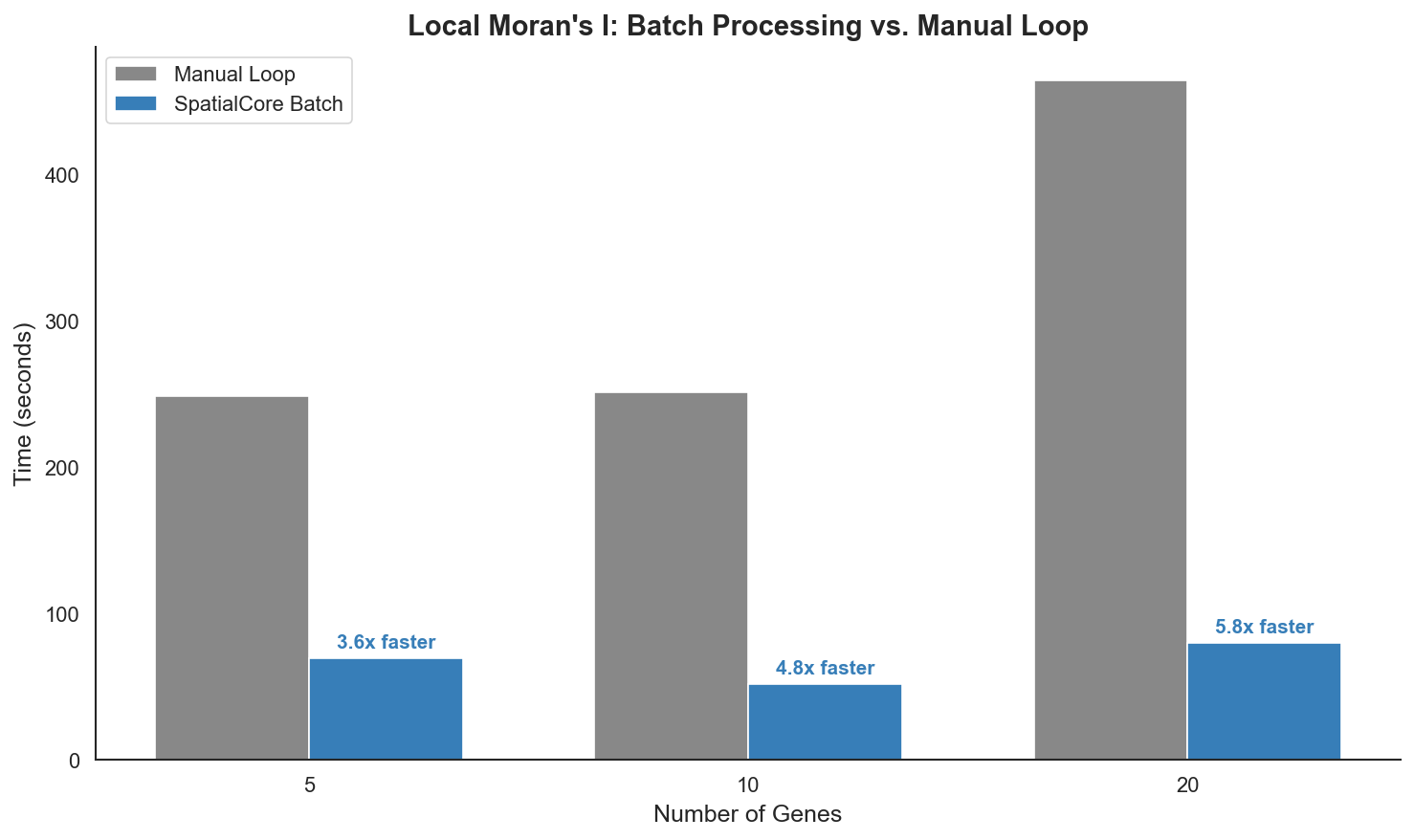

Performance

SpatialCore uses batch processing for multi-gene analysis, avoiding redundant graph construction:

# Efficient: single graph, batch processing
adata = local_morans_i(adata, genes=hvg_genes, batch_size=100)

# Inefficient: rebuilds graph for each gene
for gene in hvg_genes:
    adata = local_morans_i(adata, genes=[gene])

---

Best Practices

Permutation Count

Permutation count and significance

The minimum achievable p-value is 1/(n_permutations + 1). With n_permutations=10, the minimum p-value is 0.09—exceeding the typical 0.05 threshold.

Recommendations:

• n_permutations=99: Minimum p-value of 0.01 (sufficient for most analyses)
• n_permutations=999: Minimum p-value of 0.001 (high-confidence results)

The vignette images use 10 permutations for speed. Production analyses should use 99+.

Neighborhood Size

k-neighbors	Radius	Use Case
6-10	~50 px	Direct cell-cell contact
50-100	~400 px	Tissue microenvironments
200+	~800 px	Broad tissue regions

Sparse Markers

Moran's I performs poorly on sparse markers (<5% expressing cells). A high-expressing cell surrounded by mostly non-expressing neighbors produces a negative Local I (HL outlier), even when the gene visually clusters.

For sparse markers, consider:

• Kernel density estimation
• Point pattern analysis (Ripley's K)
• Binary spatial tests

---

API Summary

from spatialcore.spatial import morans_i, local_morans_i, lees_l, lees_l_local

# Global Moran's I - univariate, tissue-wide
adata = morans_i(adata, genes=["GENE1", "GENE2"], n_neighbors=50, n_permutations=99)
# Results: adata.uns["morans_i"] -> DataFrame(gene, I, p_value)

# Local Moran's I - univariate, per-cell
adata = local_morans_i(adata, genes=["GENE1"], n_neighbors=50, n_permutations=99)
# Results: adata.obsm["local_morans_I"], adata.obsm["local_morans_quadrant"]

# Global Lee's L - bivariate, tissue-wide
results = lees_l(adata, gene_pairs=[("GENE1", "GENE2")], n_neighbors=50, n_permutations=99)
# Results: list of dicts with gene_x, gene_y, L, p_value

# Local Lee's L - bivariate, per-cell
adata = lees_l_local(adata, gene_pairs=("GENE1", "GENE2"), n_neighbors=50, n_permutations=99)
# Results: adata.obs["GENE1_GENE2_lees_l"], adata.obs["GENE1_GENE2_quadrant"]
