Spatial NMF (spaNMF)¶

Identify spatial gene-expression programs by smoothing each cell over its neighbors, then running NMF.

Overview¶

spaNMF (Spatial Non-negative Matrix Factorization) captures tissue microenvironments by combining spatial smoothing with NMF. Compared to standard NMF on raw expression, spaNMF incorporates local context, reduces noise, and yields additive, interpretable gene programs.

Key advantages:

Spatial awareness: Models local tissue context
Noise reduction: Neighbor averaging smooths technical noise
Interpretable factors: Non-negative, additive programs

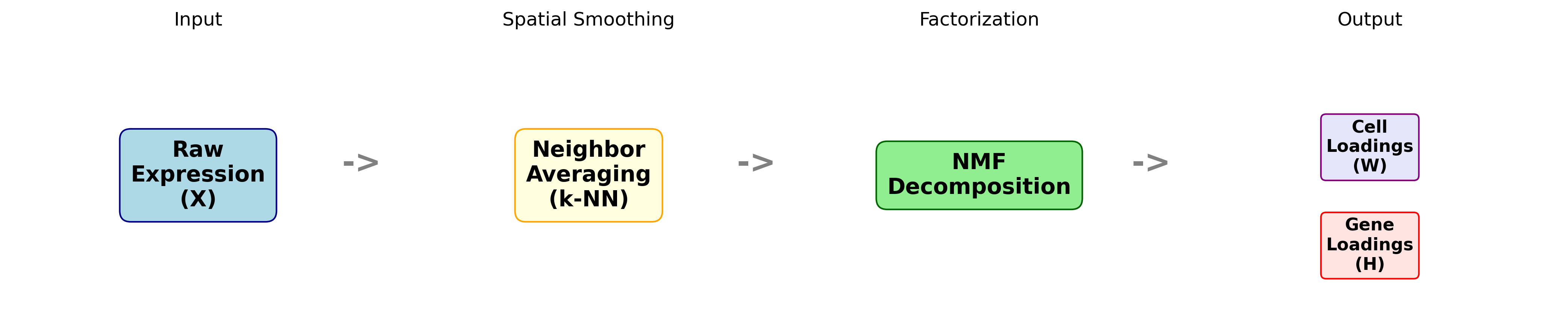

How it Works¶

Neighbor averaging: For each cell, average expression across its k nearest spatial neighbors. This smooths noise and captures local microenvironment signals.
NMF decomposition: Factor the smoothed matrix into cell loadings (how much each cell expresses each program) and gene loadings (which genes define each program).

Math: Neighbor averaging: \(\bar{X} = W \cdot X\) where \(W\) is a sparse, row-normalized neighbor matrix. NMF decomposition: \(\bar{X} \approx C \cdot G^T\) where \(C\) = cell loadings, \(G\) = gene loadings.

Why NMF over PCA? NMF constrains loadings to be non-negative, producing additive gene programs that are biologically intuitive. A cell can "use" 30% of program A and 70% of program B. PCA's signed loadings lack this interpretability.

Quick Start¶

import scanpy as sc
import numpy as np
from spatialcore.nmf import calculate_neighbor_expression, run_spanmf
from spatialcore.plotting.nmf import (
    plot_component_spatial,
    plot_top_genes,
    plot_gene_loading,
    plot_component_correlation,
)

# Load spatial data
adata = sc.read_h5ad("cosmx_colon_celltyped.h5ad")

# Optional: subsample for faster runtime
np.random.seed(42)
idx = np.random.choice(adata.n_obs, size=int(adata.n_obs * 0.5), replace=False)
adata = adata[np.sort(idx)].copy()

# Step 1: Compute neighborhood-averaged expression
adata = calculate_neighbor_expression(
    adata,
    method="knn",
    k=15,
    include_self=True,
    scale=True,
)

# Step 2: Run NMF
adata = run_spanmf(
    adata,
    n_components=10,
    random_state=42,
    max_iter=100,
)

# Visualize results
fig = plot_component_spatial(adata, components="all", ncols=5, spot_size=0.3)
fig = plot_top_genes(adata, n_genes=12, ncols=5)
fig, component = plot_gene_loading(adata, gene="KRAS")
fig = plot_component_correlation(adata, method="pearson", cluster=True)

Method¶

Neighbor Averaging¶

Compute neighborhood-averaged expression using spatial neighbors. Results are stored in adata.layers["neighbor_expression"].

adata = calculate_neighbor_expression(
    adata,
    method="knn",
    k=15,
    include_self=True,
    scale=True,
)

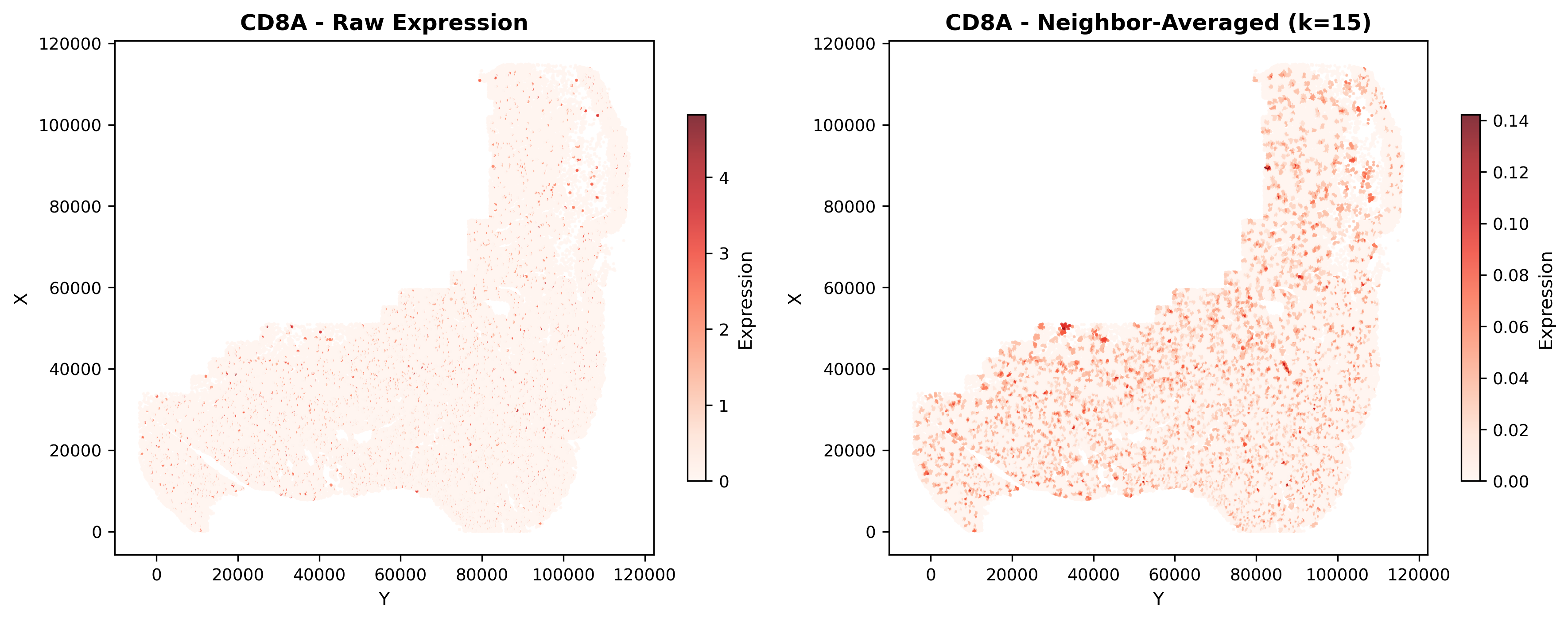

Effect of neighbor averaging:

Left: Raw expression (noisy, scattered). Right: Neighbor-averaged expression (smooth spatial patterns emerge).

Parameters:

Parameter	Default	Description
`method`	`"knn"`	`"knn"` for k-nearest neighbors, `"radius"` for distance threshold
`k`	`10`	Number of neighbors for knn method
`include_self`	`True`	Include the cell itself in the neighborhood average
`radius`	`None`	Distance threshold for radius method (coordinate units)
`scale`	`True`	Min-max scale expression before averaging
`layer`	`None`	Expression layer to use (`None` = `adata.X`)

NMF Decomposition¶

Run NMF on the smoothed matrix to produce cell and gene loadings.

adata = run_spanmf(
    adata,
    n_components=10,
    random_state=42,
    max_iter=100,
)

Results:

adata.obsm["X_spanmf"]: Cell loadings (n_cells x n_components)
adata.varm["spanmf_loadings"]: Gene loadings (n_genes x n_components)
adata.uns["spanmf"]: Parameters and metadata

Parameters:

Parameter	Default	Description
`n_components`	`10`	Number of NMF factors
`neighbor_key`	`None`	Layer with neighbor expression (default: `"neighbor_expression"`)
`genes_to_use`	`None`	Subset of genes to include
`genes_to_exclude`	`None`	Genes to exclude (e.g., control probes)
`random_state`	`42`	Random seed for reproducibility
`max_iter`	`100`	Maximum NMF iterations

Visualization¶

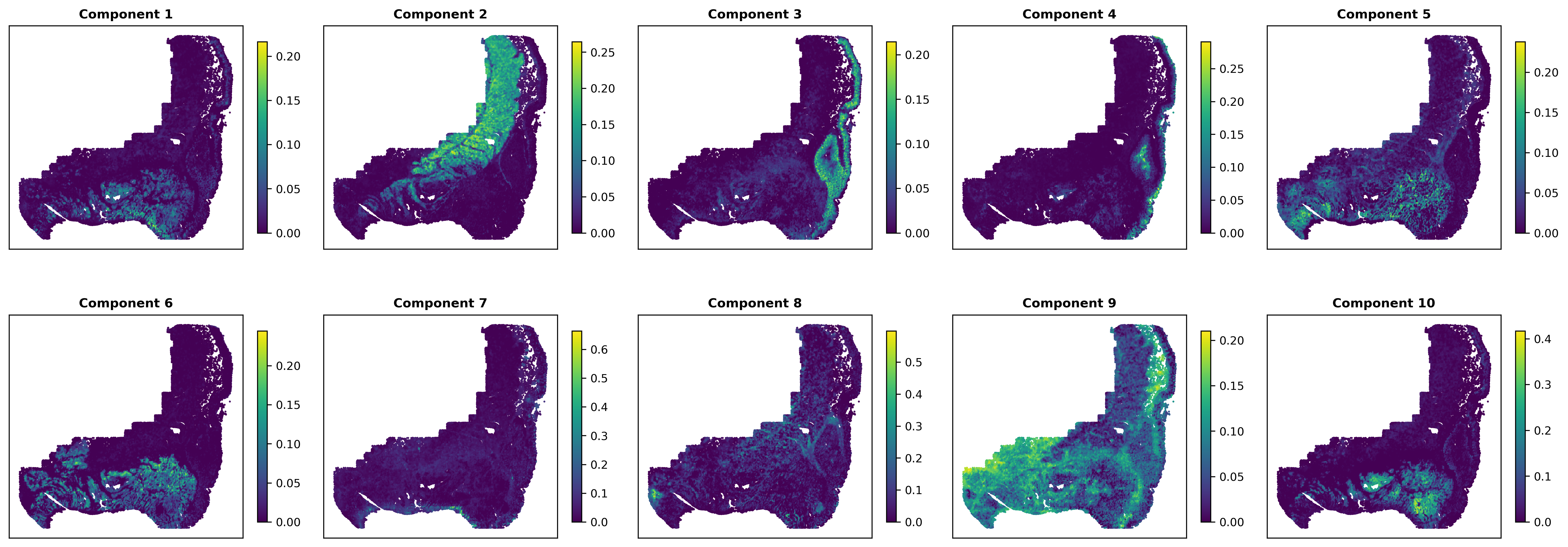

Spatial Distribution of Components¶

fig = plot_component_spatial(adata, components="all", ncols=5, spot_size=0.3)

When to use: After spaNMF to see where each program localizes in tissue. What it shows: Cell loadings on spatial coordinates. Bright regions indicate cells strongly expressing that gene program. Components that localize to distinct tissue regions are capturing meaningful spatial biology.

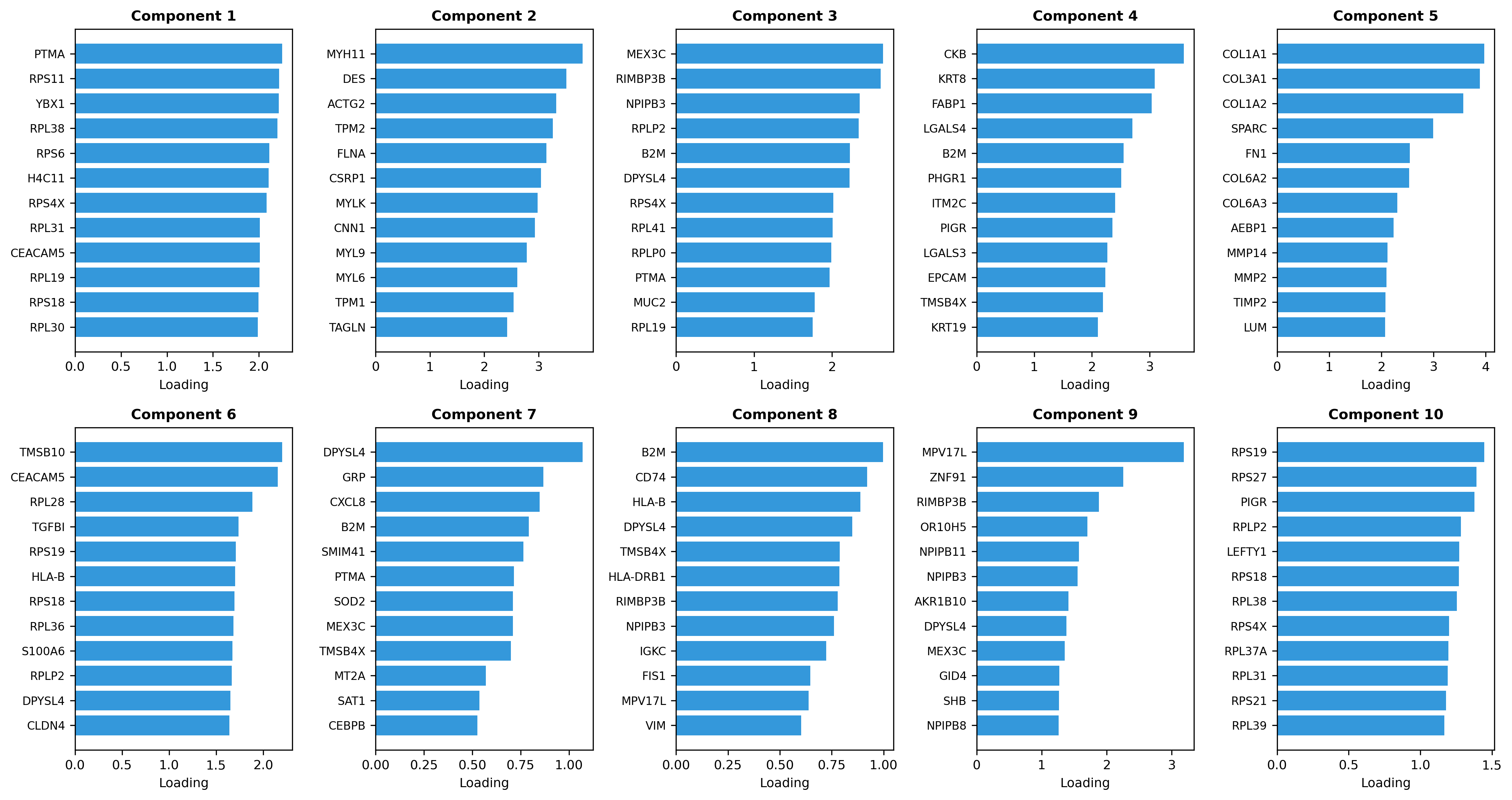

Top Genes per Component¶

fig = plot_top_genes(adata, n_genes=12, ncols=5)

When to use: To interpret the biological meaning of each component.
What it shows: The highest-loading genes per component.

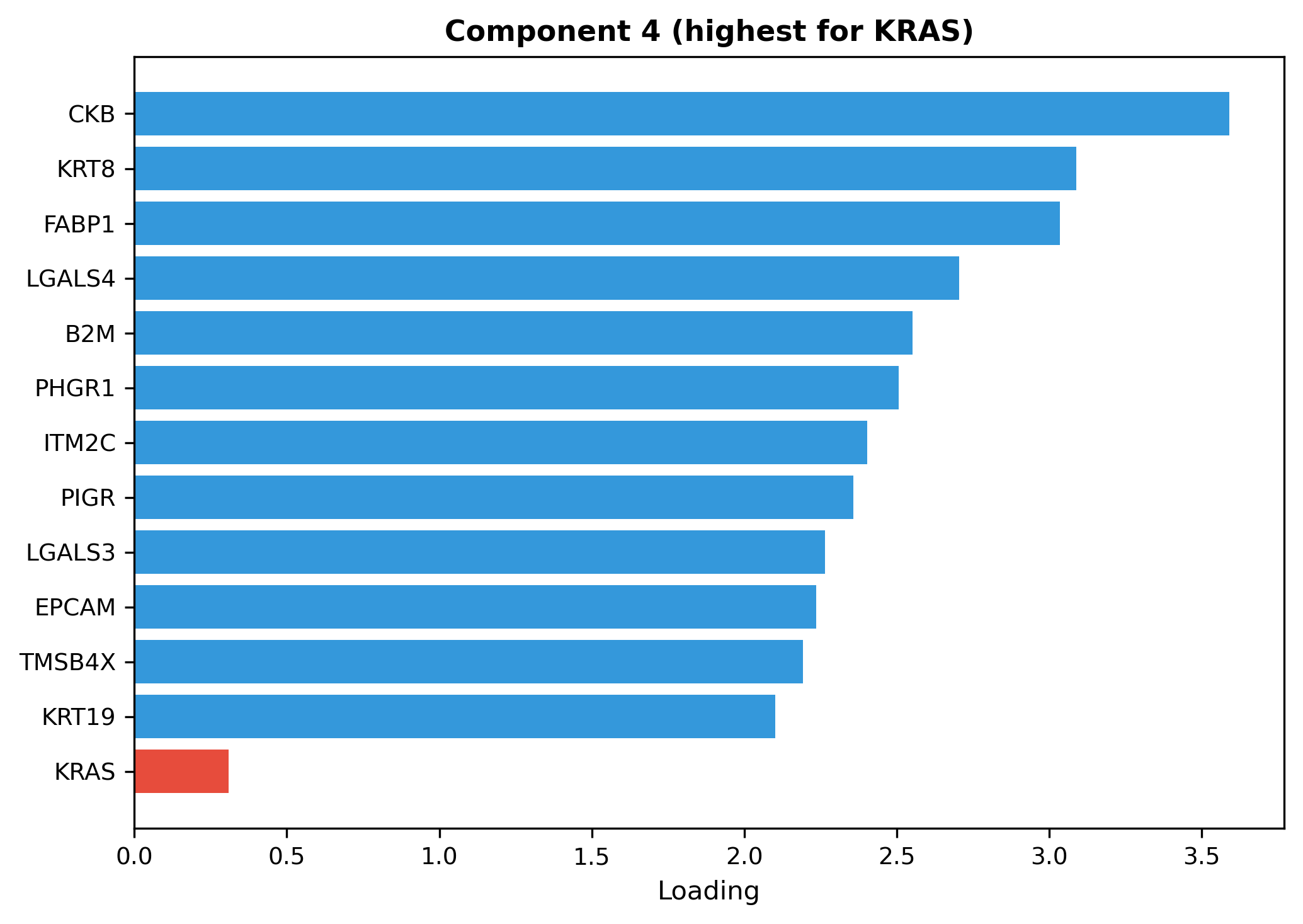

Find a Gene's Component¶

fig, component = plot_gene_loading(adata, gene="KRAS")
print(f"KRAS loads highest on component {component + 1}")

When to use: When you have a gene of interest and want its dominant program.
What it shows: The component where the gene loads highest.

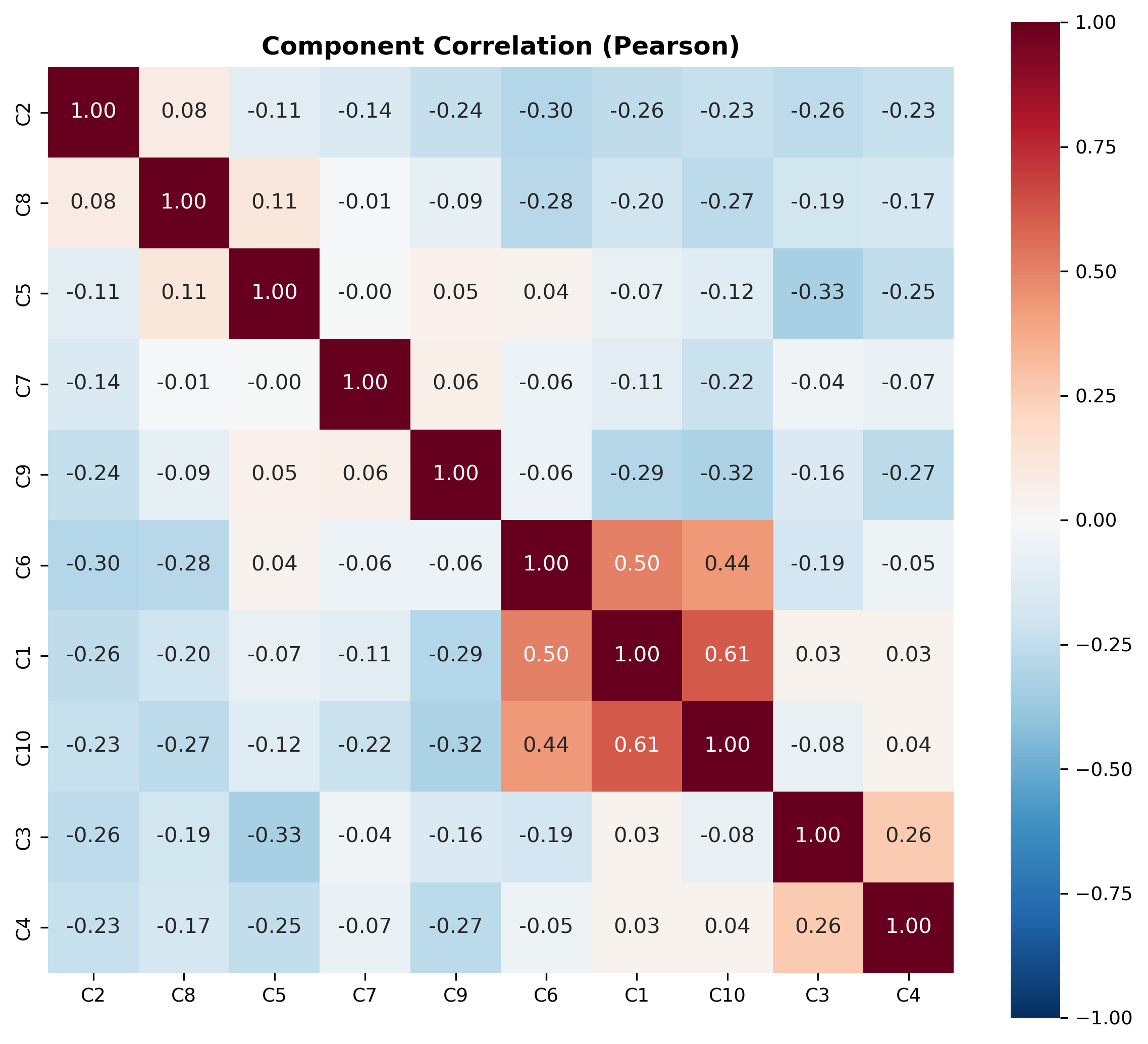

Component Correlations¶

fig = plot_component_correlation(adata, method="pearson", cluster=True)

When to use: To check if n_components is appropriate. What it shows: Pairwise correlations between components. Values near 0 indicate independent programs. High correlations (|r| > 0.7) suggest redundant components - consider reducing n_components.

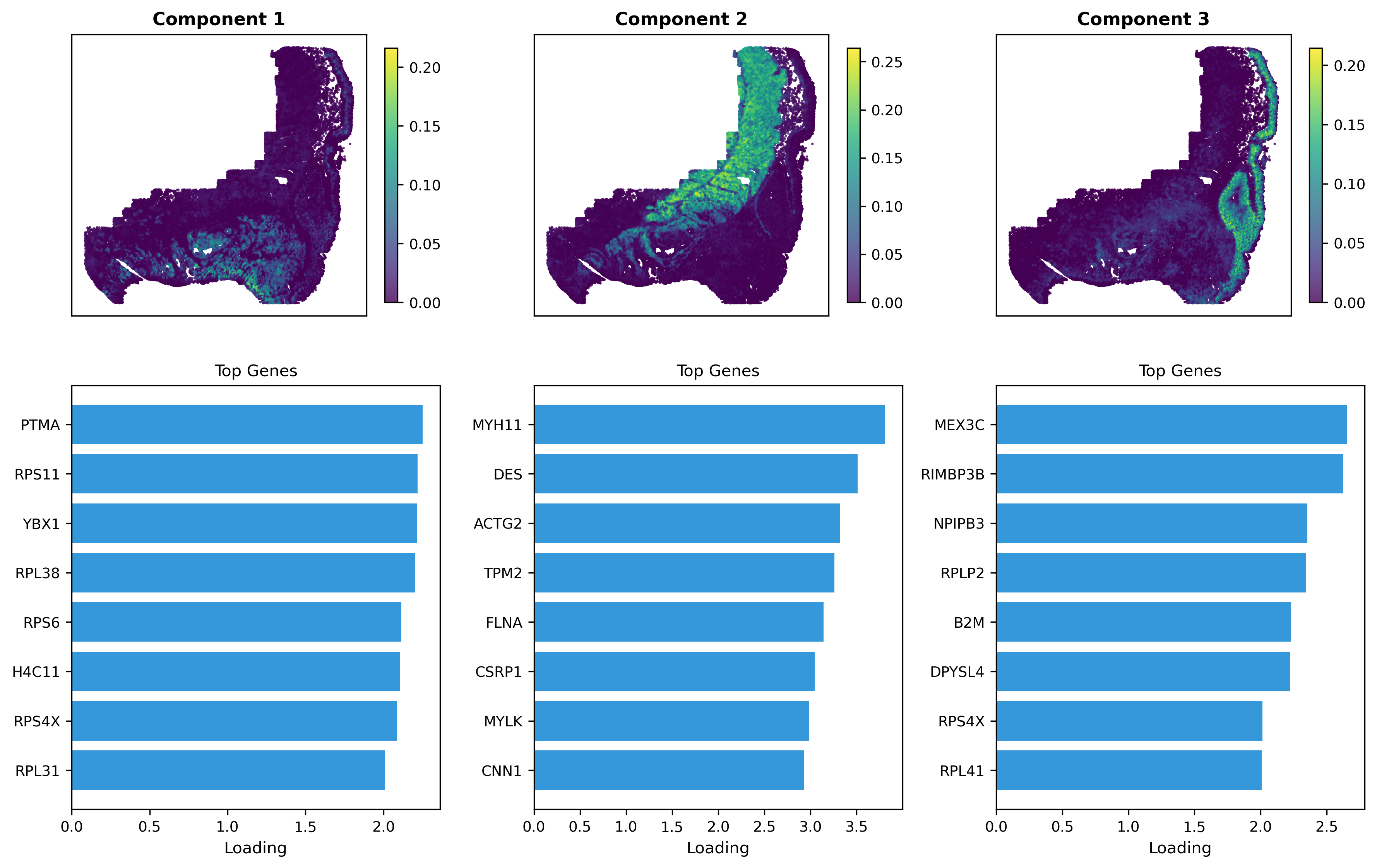

Interpreting Components¶

Each component is a spatial gene program. A simple readout:

Spatial localization: Where does the component appear?
Top genes: Do they match known markers?
Cell types: Does it align with expected populations?

Example interpretations:

T-cell markers (CD3E, CD8A) in lymphoid aggregates: T-cell program
Epithelial markers (EPCAM, KRT8) in glandular regions: Epithelial program
Fibroblast markers (COL1A1, VIM) in stroma: Stromal program

Choosing `n_components`¶

Start with 10 for most tissues
Increase if components mix distinct biology
Decrease if many pairs are highly correlated (|r| > 0.7)

Performance¶

spaNMF is optimized for large spatial datasets.

Speed Optimizations¶

Operation	Optimization	Complexity
Neighbor finding	`scipy.spatial.cKDTree`	O(n log n) vs O(n^2) brute force
Neighbor averaging	Sparse matrix multiplication	O(n * k * genes) single operation
NMF	scikit-learn with NNDSVD init	Efficient coordinate descent

Memory Optimizations¶

Data structure	Memory usage
Sparse weight matrix W	O(n * k) vs O(n^2) dense
Cell/gene loadings	float32 (4 bytes per value)
Neighbor expression	Dense only if `scale=True`

Benchmark¶

On a standard workstation:

Dataset	Cells	Genes	Runtime
CosMx Colon	200,183	18,985	~10 minutes

Bottleneck: NMF iterations dominate runtime. Neighbor computation is fast (< 30 seconds for 200k cells).

R Alternative¶

For R users, RcppML provides optimized NMF implementations with similar performance.

API Reference¶

Function	Description
`calculate_neighbor_expression(adata, method="knn", k=10, ...)`	Compute neighborhood-averaged expression matrix
`run_spanmf(adata, n_components=10, ...)`	Run NMF on neighbor-averaged expression
`plot_component_spatial(adata, components="all", ...)`	Spatial heatmap of component loadings
`plot_top_genes(adata, n_genes=15, ...)`	Bar plots of top genes per component
`plot_gene_loading(adata, gene, ...)`	Find which component a gene loads highest on
`plot_component_correlation(adata, method="pearson", ...)`	Component correlation heatmap

See docstrings for full parameter details.

Data

This vignette uses the CosMx Colon dataset (200,183 cells, 18,985 genes).
