Domain Detection

Segmenting tissue into spatially contiguous regions with shared composition.

---

Overview

Domains are spatially coherent tissue regions with consistent cell-type composition and expression patterns. Unlike niches, which are compositional archetypes that can appear anywhere, domains explicitly segment the tissue into bounded spatial areas.

Beyond niche-based segmentation, make_spatial_domains functions as a general tissue decomposition tool—aggregating cells of any shared category into discrete, spatially contiguous regions. The input is flexible: cell types, niche labels from neighborhood analysis, or any categorical variable in adata.obs can seed domain detection. This makes domains useful for questions like "where are the B cell zones?" or "which tissue areas share a common microenvironment?"

This vignette uses B cells from CosMx colon data and follows the workflow shown below. The outputs are saved to docs/domains/domain_detection_images.

---

Conceptual Workflow

Step	Operation	Output
1. Neighborhoods	Define local context (k-NN or radius)	Per-cell context features
2. Niche Typing	Cluster neighborhoods by composition	Niche labels (recurring archetypes)
3. Domain Detection	Spatially segment tissue (with smoothing)	Domain labels (contiguous regions)

The key distinction: Step 2 groups cells by what kind of microenvironment they're in (location independent). Step 3 identifies where in the tissue those microenvironments form spatially contiguous regions.

---

Workflow

We apply domain detection to B cells (filtering by hieratype_ontology_name == 'B cell') and create four deliverables: spatial domain map, cell type composition, marker genes, and inter-domain distances.

1. Run domain detection

import scanpy as sc
from spatialcore.spatial import make_spatial_domains

# Load data
adata = sc.read_h5ad("cosmx_colon_hieratype.h5ad")

# Spatial domain detection on B cells
adata = make_spatial_domains(
    adata,
    filter_expression="hieratype_ontology_name == 'B cell'",
    output_column="bcell_domain",
    domain_prefix="Bcell",
    platform="cosmx",
)

2. Plot domains and composition

from spatialcore.spatial import calculate_domain_distances
from spatialcore.plotting import plot_domain_distances

# Spatial domain map
plot_domains(
    adata,
    domain_col="bcell_domain",
    title="B Cell Domains",
    output_path="docs/domains/domain_detection_images/bcell_domains.png",
)

# Cell type composition per domain
plot_domain_composition(
    adata,
    domain_col="bcell_domain",
    celltype_col="hieratype_ontology_name",
    title="Cell Type Composition of B Cell Domains",
    output_path="docs/domains/domain_detection_images/bcell_domain_composition.png",
)

3. Marker genes and inter-domain distances

# Marker genes (Wilcoxon)
adata_domains = adata[adata.obs["bcell_domain"].notna()].copy()
sc.tl.rank_genes_groups(
    adata_domains,
    groupby="bcell_domain",
    method="wilcoxon",
    n_genes=50,
)
sc.pl.rank_genes_groups_dotplot(adata_domains, n_genes=10, show=False)

# Inter-domain distances (minimum distance)
adata = calculate_domain_distances(
    adata,
    source_domain_column="bcell_domain",
    target_domain_column="bcell_domain",
    distance_metric="minimum",
    output_mode="both",
)
plot_domain_distances(
    adata,
    source_domain_column="bcell_domain",
    target_domain_column="bcell_domain",
    title="Inter-B Cell Domain Distances (minimum)",
    save="docs/domains/domain_detection_images/bcell_domain_distances.png",
)

---

Results

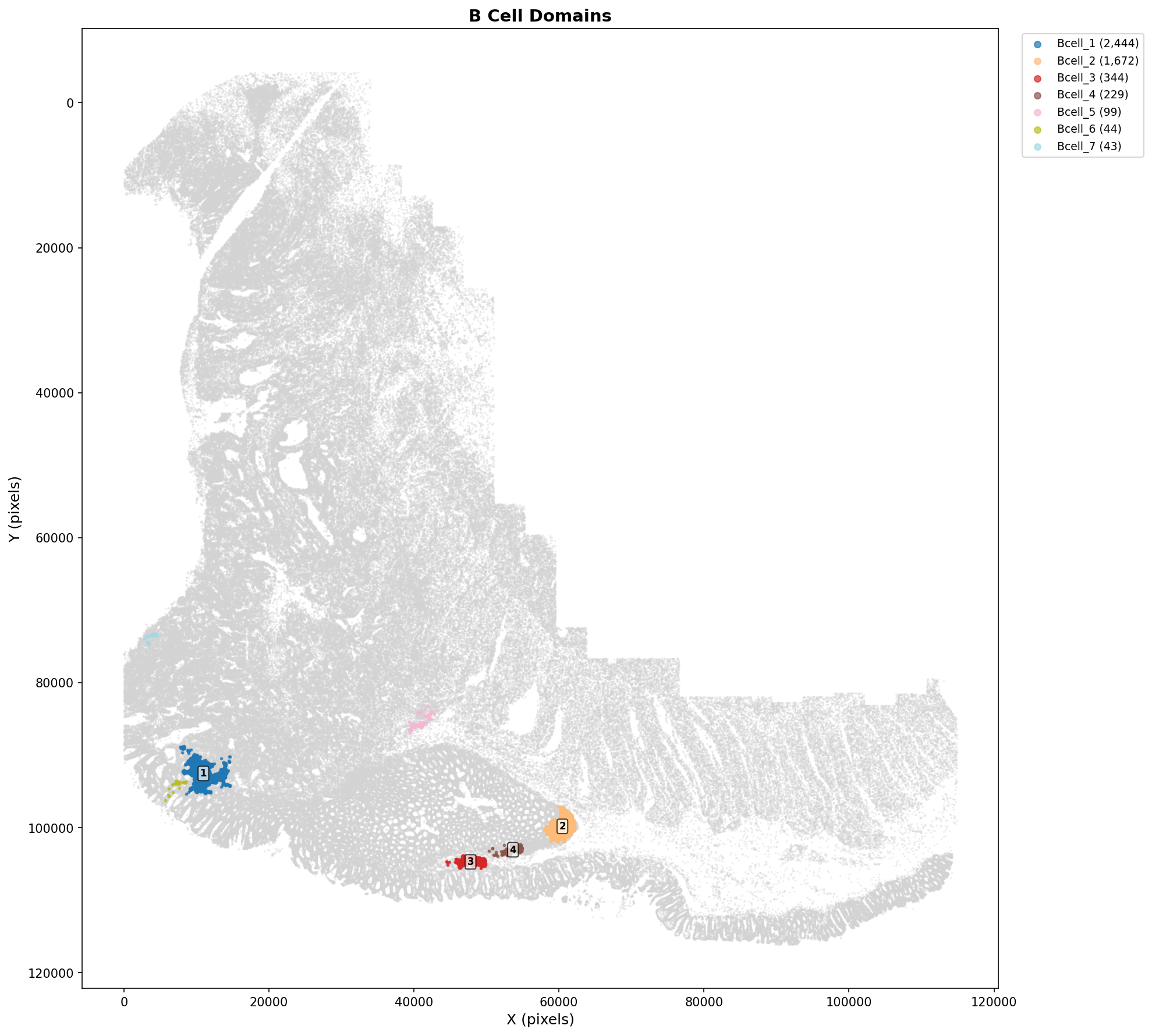

Spatial Domain Map

Domains form spatially contiguous B cell regions. Labels are placed at domain centroids for domains with sufficient cells (min 100).

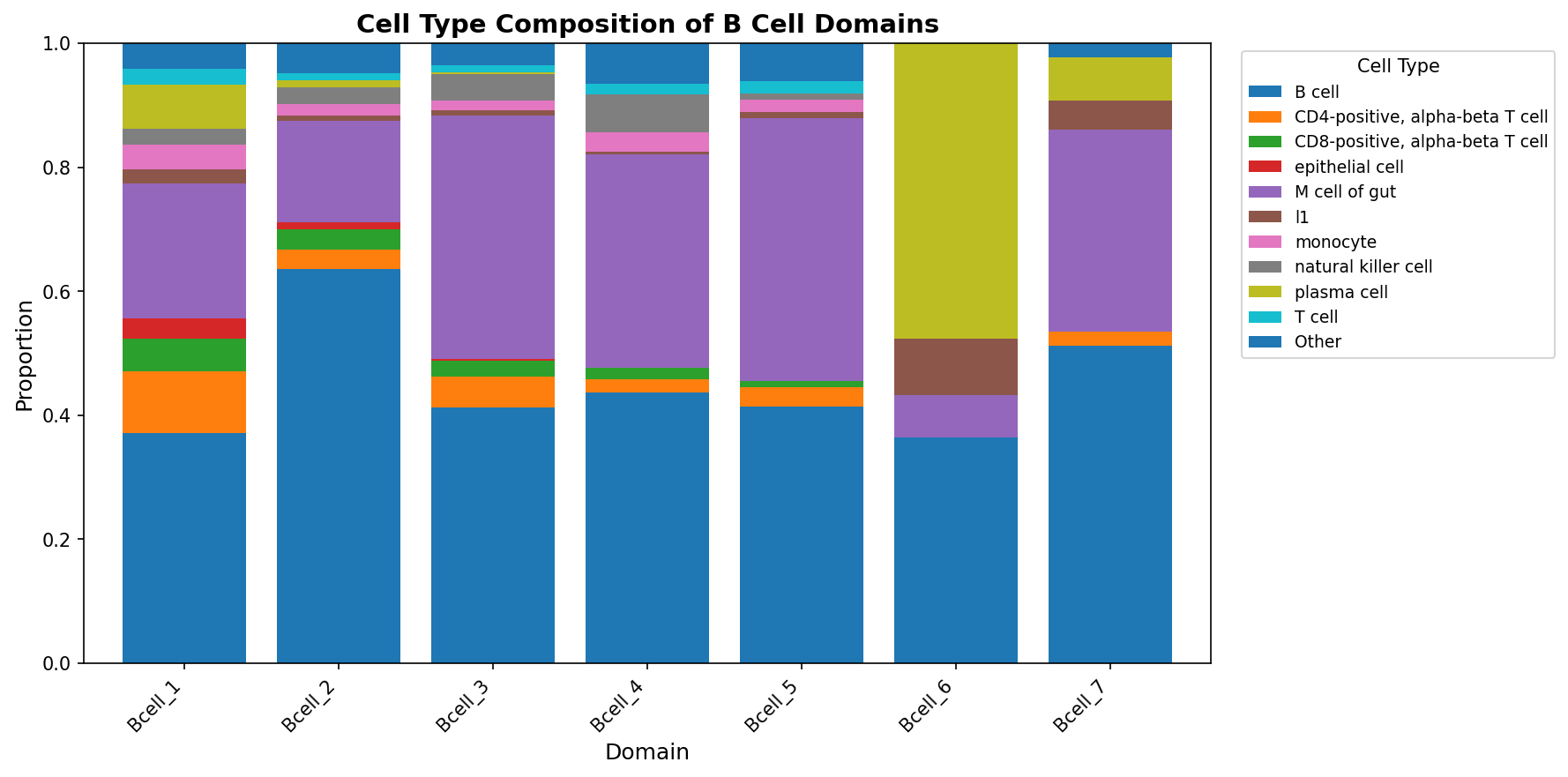

Cell Type Composition per Domain

While domains are seeded on B cells, each region exhibits a distinct local mix of other cell types, highlighting microenvironmental structure.

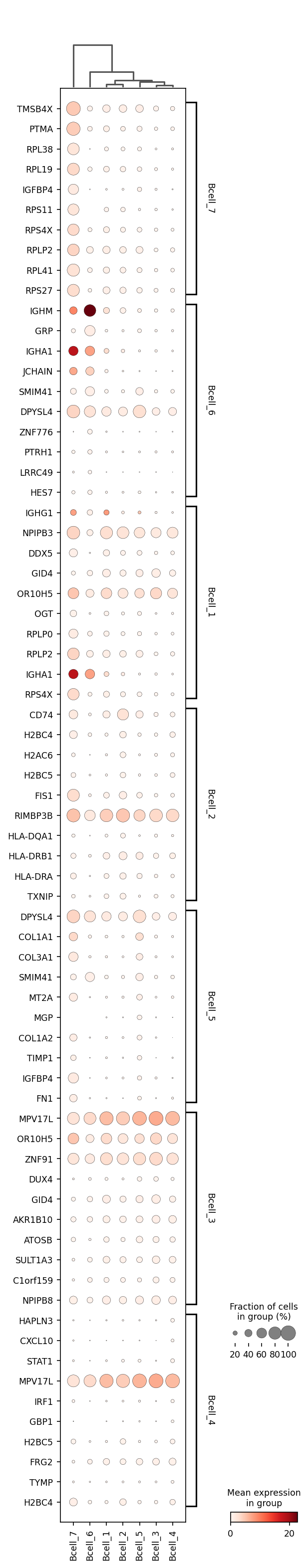

Marker Genes by Domain

Differential expression across domains exposes transcriptional differences between spatial regions of B cells.

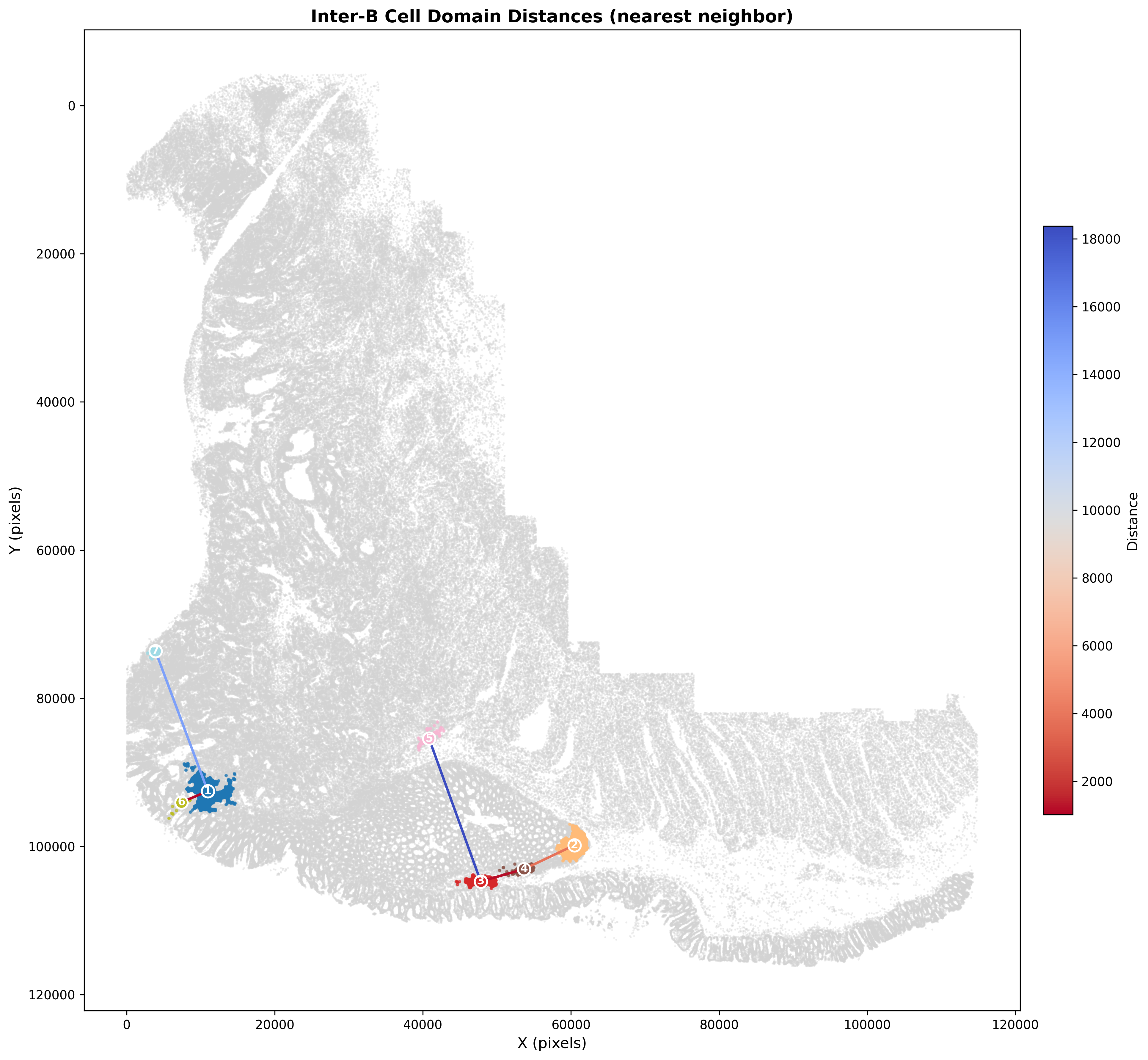

Inter-Domain Distances

Minimum distances between domains reveal spatial separation and adjacency patterns.

---

Best Practices

• Filtering: Run domains on a focused population (e.g., B cells) for clean spatial segmentation and biological interpretability.
• Minimum domain size: Exclude small regions for labeling and interpretation (used here: 100 cells).
• Validation: Pair spatial maps with composition and marker genes to confirm biological coherence.
• Distance metrics: Start with minimum distance for adjacency; use additional metrics if you need global separation trends.

Citation

If you use this workflow, please cite:

@software{spatialcore,
  title = {SpatialCore: Standardized spatial statistics for computational biology},
  url = {https://github.com/mcap91/SpatialCore}
}
