Pipeline & API Reference¶

Complete technical specification for the SpatialCore cell typing workflow.

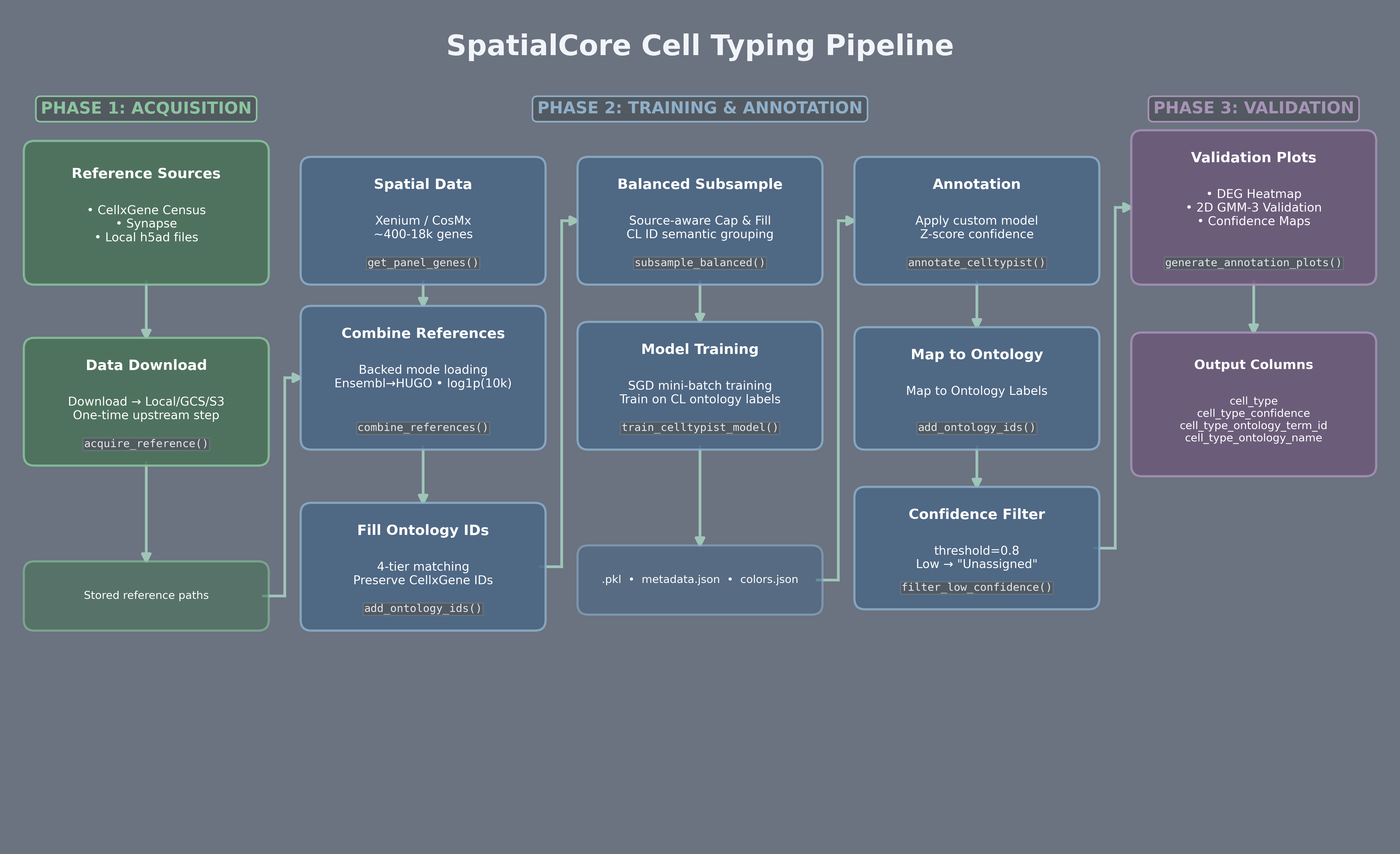

Architecture¶

Quick Comparison

Aspect	Standard CellTypist	SpatialCore Pipeline
Model type	Pre-trained (Immune_All, etc.)	Custom (panel-specific)
Gene overlap	~5–9% on 400-gene panels	100%
Confidence metric	Raw sigmoid probability	Z-score transformed
Threshold meaning	"Model >50% likely"	"Above average for this dataset"
Ontology mapping	Model-dependent labels	Cell Ontology (CL) IDs
Multi-reference handling	N/A	Source-aware balancing

The pipeline trains custom CellTypist models on scRNA-seq references, produces calibrated confidence scores via z-score transformation, and maps predictions to Cell Ontology (CL) IDs.

Column Naming Convention (CellxGene Standard)

All outputs use the CellxGene schema:

Column	Type	Description
`cell_type`	`str`	Final cell type (ontology-mapped, confidence-filtered)
`cell_type_predicted`	`str`	Raw model prediction before confidence filtering
`cell_type_confidence`	`float`	Z-score transformed confidence [0, 1]
`cell_type_confidence_raw`	`float`	Winning-model probability from CellTypist (decision scores live in `cell_type_decision_scores` when available)
`cell_type_ontology_term_id`	`str`	Cell Ontology ID (e.g., `CL:0000624`)
`cell_type_ontology_label`	`str`	Canonical ontology name (unfiltered, all cells)
`original_label`	`str`	Raw label from source reference
`reference_source`	`str`	Which reference file the cell came from

Phase 1: Data Acquisition¶

Phase 1 handles downloading reference data from public databases and storing to local filesystem or cloud storage. This is a one-time upstream step that decouples data acquisition from the training pipeline.

`acquire_reference()`¶

Download reference data from a source and store to a destination.

def acquire_reference(
    source: str,
    output: Union[str, Path],
    force: bool = False,
    **kwargs,
) -> str:

Parameters:

Parameter	Type	Description
`source`	`str`	Source URI (see supported schemes below)
`output`	`str` or `Path`	Destination path or URI
`force`	`bool`	Re-download even if output exists
`**kwargs`		Source-specific options (e.g., `max_cells`, `auth_token`)

Supported Source Schemes:

Scheme	Format	Example
CellxGene dataset	`cellxgene://dataset_key`	`cellxgene://human_lung_cell_atlas`
CellxGene query	`cellxgene://?tissue=X&disease=Y`	`cellxgene://?tissue=lung&disease=normal`
Synapse	`synapse://synXXXXXXXX`	`synapse://syn12345678`

Supported Destination Schemes:

Scheme	Format	Auth Required
Local	`/path/to/file.h5ad`	No
GCS	`gs://bucket/path/file.h5ad`	`GOOGLE_APPLICATION_CREDENTIALS`
S3	`s3://bucket/path/file.h5ad`	`AWS_ACCESS_KEY_ID`, `AWS_SECRET_ACCESS_KEY`

Examples:

from spatialcore.annotation import acquire_reference

# Download from CellxGene → store locally
path = acquire_reference(
    source="cellxgene://human_lung_cell_atlas",
    output="/data/references/hlca.h5ad",
)

# CellxGene query with filters → store to GCS
gcs_path = acquire_reference(
    source="cellxgene://?tissue=lung&disease=normal",
    output="gs://my-bucket/references/healthy_lung.h5ad",
    max_cells=100000,
)

`resolve_uri_to_local()`¶

Resolve a URI to a local file path, downloading if necessary.

def resolve_uri_to_local(
    uri: str,
    cache_dir: Path,
    force: bool = False,
) -> Path:

Used internally by combine_references() to handle cloud URIs transparently.

Available CellxGene Datasets¶

from spatialcore.annotation import list_available_datasets

datasets = list_available_datasets()
print(datasets)

Dataset Key	Tissue	Description
`healthy_human_liver`	liver	Healthy human liver scRNA-seq
`colon_immune_niches`	colon	Colon immune microenvironment
`human_lung_cell_atlas`	lung	HLCA reference atlas
`lung_covid`	lung	COVID-19 lung atlas

Phase 2: Training & Annotation¶

Phase 2 handles the core pipeline: loading references, training a custom CellTypist model, and annotating spatial data.

High-Level API: `train_and_annotate()`¶

Full workflow in a single call — the recommended approach for most users.

def train_and_annotate(
    adata: AnnData,
    references: List[Union[str, Path]],
    tissue: str = "unknown",
    label_columns: List[str],
    balance_strategy: Literal["proportional", "equal"] = "proportional",
    max_cells_per_type: int = 5000,
    max_cells_per_ref: int = 100000,
    target_proportions: Optional[Union[Dict[str, float], str, Path]] = None,
    confidence_threshold: float = 0.8,
    model_output: Optional[Union[str, Path]] = None,
    plot_output: Optional[Union[str, Path]] = None,
    add_ontology: bool = True,
    generate_plots: bool = True,
    copy: bool = False,
) -> AnnData:

Parameters:

Parameter	Type	Default	Description
`adata`	`AnnData`	required	Spatial data to annotate
`references`	`List[str]`	required	Paths/URIs to reference files
`tissue`	`str`	`"unknown"`	Tissue type for model naming
`label_columns`	`List[str]`	required	Cell type column per reference (must be provided; no auto-detect)
`balance_strategy`	`str`	`"proportional"`	Source balancing strategy
`max_cells_per_type`	`int`	`5000`	Max cells per type after balancing
`max_cells_per_ref`	`int`	`100000`	Max cells to load per reference
`target_proportions`	`Dict` / `Path`	`None`	Expected proportions for FACS/enriched cell types
`confidence_threshold`	`float`	`0.8`	Below this → "Unassigned"
`model_output`	`Path`	`None`	Save model to this path
`plot_output`	`Path`	`None`	Save plots to this directory
`add_ontology`	`bool`	`True`	Map predictions to CL IDs
`generate_plots`	`bool`	`True`	Generate validation plots (best-effort; failures logged, pipeline continues)

Example:

from spatialcore.annotation import train_and_annotate
import scanpy as sc

# Load spatial data
adata = sc.read_h5ad("xenium_lung.h5ad")

# Train and annotate in one call
adata = train_and_annotate(
    adata,
    references=[
        "gs://my-bucket/references/hlca.h5ad",
        "/local/data/lung.h5ad",
    ],
    tissue="lung",
    balance_strategy="proportional",
    confidence_threshold=0.8,
    model_output="./models/lung_custom_v1.pkl",
    plot_output="./qc_plots/",
)

# Results in CellxGene standard columns
print(adata.obs["cell_type"].value_counts())
print(f"Mean confidence: {adata.obs['cell_type_confidence'].mean():.3f}")

Config-Driven API: `TrainingConfig`¶

For reproducible workflows, use YAML configuration.

@dataclass
class TrainingConfig:
    tissue: str = "unknown"
    references: List[str] = field(default_factory=list)
    label_columns: List[str]
    balance_strategy: Literal["proportional", "equal"] = "proportional"
    max_cells_per_type: int = 5000
    max_cells_per_ref: int = 100000
    target_proportions: Optional[Union[Dict[str, float], str, Path]] = None
    confidence_threshold: float = 0.8
    add_ontology: bool = True
    generate_plots: bool = True

Example YAML (training_config.yaml):

tissue: lung
references:
  - gs://my-bucket/references/hlca.h5ad
  - /local/data/lung.h5ad
label_columns:
  - cell_type
  - cell_type
balance_strategy: proportional
max_cells_per_type: 5000
max_cells_per_ref: 100000
confidence_threshold: 0.8
add_ontology: true
generate_plots: true

Usage:

from spatialcore.annotation import TrainingConfig, train_and_annotate_config

config = TrainingConfig.from_yaml("training_config.yaml")
adata = train_and_annotate_config(adata, config, plot_output="./qc/")

Low-Level Functions¶

For users who need fine-grained control over each stage.

Panel Gene Filtering

With low-level functions, you're responsible for passing target_genes to combine_references(). Use get_panel_genes() to extract your spatial panel, then pass it to ensure the reference is subset to matching genes.

`combine_references()`¶

Combine multiple reference datasets with memory-efficient loading and optional filtering.

def combine_references(
    reference_paths: List[Union[str, Path]],
    label_columns: List[str],
    output_column: str = "original_label",
    max_cells_per_ref: int = 100000,
    target_genes: Optional[List[str]] = None,
    normalize_data: bool = True,
    random_state: int = 42,
    validate_labels: bool = True,
    min_cells_per_type: int = 10,
    strict_validation: bool = False,
    cache_dir: Optional[Path] = None,
    exclude_labels: Optional[List[str]] = None,
    filter_min_cells: bool = True,
) -> AnnData:

Parameters:

Parameter	Type	Default	Description
`reference_paths`	`List[str]`	required	Paths/URIs to reference h5ad files
`label_columns`	`List[str]`	required	Cell type column for each reference
`output_column`	`str`	`"original_label"`	Column name for unified labels
`max_cells_per_ref`	`int`	`100000`	Max cells to load per reference
`target_genes`	`List[str]`	`None`	Panel genes to subset to
`normalize_data`	`bool`	`True`	Apply log1p(10k) normalization
`min_cells_per_type`	`int`	`10`	Minimum cells per type for filtering
`exclude_labels`	`List[str]`	`None`	Labels to exclude (see below)
`filter_min_cells`	`bool`	`True`	Remove types below min_cells_per_type

Label Filtering (exclude_labels):

By default, ambiguous labels are removed after concatenation:

DEFAULT_EXCLUDE_LABELS = [
    "unknown", "Unknown", "UNKNOWN",
    "unassigned", "Unassigned",
    "na", "NA", "N/A", "n/a",
    "none", "None", "null",
    "doublet", "Doublet",
    "low quality", "Low quality",
]

Uses exact case-sensitive matching (no partial matches)
"unknown cells" would NOT be filtered (not exact match to "unknown")
Pass exclude_labels=[] to disable label filtering entirely
Import DEFAULT_EXCLUDE_LABELS to customize:

from spatialcore.annotation import DEFAULT_EXCLUDE_LABELS, combine_references

# Add custom labels to exclude
my_excludes = DEFAULT_EXCLUDE_LABELS + ["debris", "empty"]
combined = combine_references(..., exclude_labels=my_excludes)

Low-Count Filtering (filter_min_cells):

When filter_min_cells=True (default), cell types with fewer than min_cells_per_type cells are removed. This prevents training instability from singleton types.

# Remove types with fewer than 10 cells (default behavior)
combined = combine_references(..., min_cells_per_type=10, filter_min_cells=True)

# Warn but keep all types (original behavior)
combined = combine_references(..., filter_min_cells=False)

Supported reference_paths:

Local: /data/references/lung.h5ad
GCS: gs://bucket/references/lung.h5ad
S3: s3://bucket/references/lung.h5ad

Cloud files are automatically downloaded to cache_dir (default: ~/.spatialcore/cache/references/).

`subsample_balanced()`¶

Source-aware balanced subsampling with semantic grouping and target proportions.

def subsample_balanced(
    adata: AnnData,
    label_column: str,
    max_cells_per_type: int = 5000,
    min_cells_per_type: int = 50,
    source_column: Optional[str] = "reference_source",
    source_balance: Literal["proportional", "equal"] = "proportional",
    min_cells_per_source: int = 50,
    group_by_column: Optional[str] = None,
    target_proportions: Optional[Union[Dict[str, float], str, Path]] = None,
    random_state: int = 42,
    copy: bool = True,
) -> AnnData:

Cell types with fewer than min_cells_per_type cells are removed before balancing. Set min_cells_per_type=0 to keep all types.

The group_by_column parameter:

Different references may use different names for the same cell type:

Reference A	Reference B	CL ID
"CD4-positive, alpha-beta T cell"	"CD4+ T cells"	CL:0000624
"macrophage"	"Macrophages"	CL:0000235

By setting group_by_column="cell_type_ontology_term_id", cells are grouped by CL ID for balancing:

# Correct: Group by semantic identity
balanced = subsample_balanced(
    combined,
    label_column="original_label",
    group_by_column="cell_type_ontology_term_id",
    source_balance="proportional",
)

"Cap & Fill" Algorithm:

FOR each cell_type (or CL ID group):
  1. IDENTIFY SOURCES that have this type
  2. CALCULATE per-source targets:
     IF source_balance == "proportional":
       target[src] = total x (src_count / total_count)
     ELSE (equal):
       target[src] = total / n_sources
  3. ENFORCE minimums
     target[src] = max(target[src], min_cells_per_source)
     target[src] = min(target[src], available[src])
  4. FILL SHORTFALL
     Redistribute to sources with unused capacity
  5. SAMPLE from each source

Example:

Macrophage: 35K total (Study1: 30K, Study2: 5K)
Target: 10K cells

PROPORTIONAL BALANCE:
  Study1: 10K x (30K/35K) = 8,571 cells
  Study2: 10K x (5K/35K)  = 1,429 cells

EQUAL BALANCE:
  Study1: 5,000 cells
  Study2: 5,000 cells

The target_proportions parameter:

When combining tissue references with FACS-sorted or enriched cell populations, a cell type may only exist in the enriched source. Without intervention, these cells dominate training:

Data Source	NK Cells	Problem
Tissue atlas (500K cells)	0	NK rare/absent in tissue
FACS pure NK (5K cells)	5,000 (100%)	Artificially enriched
Naive combination	5,000	Model thinks NK = 10%
Biological reality	~0.25%	NK should be rare

The target_proportions parameter solves this by specifying expected biological proportions:

# Accepts dict, JSON file, or CSV file
balanced = subsample_balanced(
    combined,
    label_column="original_label",
    max_cells_per_type=5000,
    target_proportions={"NK cell": 0.0025},  # 0.25% of training data
)

Targets are resolved against the final balanced output size (after filtering low-count types and min/max constraints), with min_cells_per_type as a floor for remaining types. target_proportions entries must exist in the data and must sum to <= 1.0; if they sum to 1.0, all types must be specified.

Supported formats:

# Dict (inline)
target_proportions={"NK cell": 0.0025, "plasma cell": 0.001}

# JSON file
target_proportions="proportions.json"
# Contents: {"NK cell": 0.0025, "plasma cell": 0.001}

# CSV file
target_proportions="proportions.csv"
# Contents:
# cell_type,proportion
# NK cell,0.0025
# plasma cell,0.001

Where to get proportions:

Literature — Known tissue composition studies
Pilot scRNA-seq — Same tissue, unenriched
Flow cytometry — Gold standard for immune populations
Expert knowledge — Pathologist/immunologist input

Cell Type Granularity for Spatial Data¶

SpatialCore's pattern matching intentionally maps certain fine-grained scRNA-seq cell type labels to coarser parent categories. This is a deliberate design choice based on the transcriptomic limitations of spatial panels.

How it works:

The pattern matching in patterns.py uses fall-through logic. Specific subtypes match explicit patterns, but generic labels fall through to the parent category:

"conventional dendritic cell type 1" → cDC1 pattern → "conventional dendritic cell type 1"
"conventional dendritic cell type 2" → cDC2 pattern → "conventional dendritic cell type 2"
"conventional dendritic cell"        → no specific match → falls through → "dendritic cell"

Why coarser categories for spatial data?

Factor	scRNA-seq	Spatial (Xenium, CosMx)
Genes measured	20,000+	300-500
Distinguishing markers	Full transcriptome	Limited to panel genes
Subtype discrimination	High (thousands of DEGs)	Limited (may lack key markers)

Examples of intentional groupings:

Reference Label	Maps To	Rationale
"conventional dendritic cell"	dendritic cell	No subtype specified; CLEC9A/XCR1/CD1C often not on panel
"intestinal tuft cell"	tuft cell	Tissue-specific prefix unnecessary when context is known
"brush cell"	tuft cell	Synonym grouping (brush cells = tuft cells)

The biological rationale:

Panel constraints — A 400-gene panel cannot include all subtype-discriminating markers. Attempting to call cDC1 vs cDC2 without CLEC9A or CD1C leads to unreliable predictions.
Confidence over precision — A high-confidence "dendritic cell" call is more useful than a low-confidence subtype call. Users can refine subtypes using spatial context.
Avoiding false specificity — Training on fine-grained labels when the model cannot distinguish them creates misleading predictions.
Downstream utility — Most spatial analyses (niche identification, cell-cell interactions, domain detection) work well with coarser cell types.

`train_celltypist_model()`¶

Train a custom CellTypist logistic regression model.

def train_celltypist_model(
    adata: AnnData,
    label_column: str = "unified_cell_type",
    model_name: str = "custom_model",
    output_path: Optional[Union[str, Path]] = None,
    use_SGD: bool = True,
    mini_batch: bool = True,
    balance_cell_type: bool = True,
    feature_selection: bool = False,
    n_jobs: int = -1,
    max_iter: int = 100,
    epochs: int = 10,
    batch_size: int = 1000,
    batch_number: int = 200,
) -> Dict[str, Any]:

Artifacts saved:

File	Description
`{name}.pkl`	CellTypist model weights
`{name}_celltypist.json`	Training metadata
`{name}_colors.json`	Color palette for visualization

`annotate_celltypist()`¶

Apply model to spatial data with z-score confidence transformation.

def annotate_celltypist(
    adata: AnnData,
    tissue: str = "unknown",
    ensemble_mode: bool = True,
    custom_model_path: Optional[Union[str, Path]] = None,
    majority_voting: bool = False,  # False for spatial!
    over_clustering: Optional[str] = None,
    min_prop: float = 0.0,
    min_gene_overlap_pct: float = 25.0,
    min_confidence: float = 0.5,
    store_decision_scores: bool = True,
    confidence_transform: Optional[ConfidenceMethod] = "zscore",
    batch_size: Optional[int] = None,
    copy: bool = False,
) -> AnnData:

majority_voting=False for spatial data

scRNA-seq (voting OK): Clusters are fine-grained. Voting improves consistency.

Spatial (voting DANGEROUS): Spatial clustering may be coarse. A single "immune" cluster might contain 1000 macrophages, 50 T cells, and 30 B cells. Voting assigns the dominant type to ALL cells — all 1080 become macrophages (WRONG!).

Solution: Always use majority_voting=False for spatial data.

Additional constraints:

If majority_voting=True, you must provide over_clustering or have a valid cluster column (e.g., leiden) in adata.obs. Otherwise a ValueError is raised.
If batch_size is set, majority_voting must be False because voting cannot be computed across batches.
If gene overlap reduces the feature set, SpatialCore re-normalizes after subsetting to match training. This requires raw counts or log1p(10k) data.
annotate_celltypist() does not accept a generate_plots parameter. Low-level users should call generate_annotation_plots() manually after annotation.

Complete Low-Level Example¶

from spatialcore.annotation import (
    get_panel_genes,
    combine_references,
    has_ontology_ids,
    add_ontology_ids,
    subsample_balanced,
    train_celltypist_model,
    annotate_celltypist,
    filter_low_confidence,
)
import scanpy as sc

# ============================================================================
# STAGE 1: Load spatial data and extract panel genes
# ============================================================================
xenium = sc.read_h5ad("xenium_lung.h5ad")
panel_genes = get_panel_genes(xenium)

# ============================================================================
# STAGE 2: Combine references (supports local + cloud URIs)
# ============================================================================
combined = combine_references(
    reference_paths=[
        "gs://my-bucket/references/hlca.h5ad",
        "/local/data/inhouse_lung.h5ad",
    ],
    label_columns=["cell_type", "cell_type"],
    output_column="original_label",
    max_cells_per_ref=100000,
    target_genes=panel_genes,
)

# ============================================================================
# STAGE 3: Fill missing ontology IDs
# ============================================================================
status = has_ontology_ids(combined)
print(f"Coverage: {status['coverage']:.1%}")

combined, _, _ = add_ontology_ids(
    combined,
    source_col="original_label",
    target_col="cell_type_ontology_term_id",
    skip_if_exists=True,  # Preserve CellxGene's existing IDs
)

# ============================================================================
# STAGE 4: Source-aware balanced subsampling
# ============================================================================
balanced = subsample_balanced(
    combined,
    label_column="original_label",
    group_by_column="cell_type_ontology_term_id",
    source_column="reference_source",
    source_balance="proportional",
    max_cells_per_type=5000,
    # Optional: For FACS/enriched references, specify target proportions
    # target_proportions={"NK cell": 0.0025, "plasma cell": 0.001},
)

# ============================================================================
# STAGE 5: Train CellTypist model
# ============================================================================
result = train_celltypist_model(
    balanced,
    label_column="cell_type_ontology_term_id",
    output_path="./models/lung_custom_v1.pkl",
)

# ============================================================================
# STAGE 6: Annotate spatial data
# ============================================================================
xenium = annotate_celltypist(
    xenium,
    custom_model_path="./models/lung_custom_v1.pkl",
    majority_voting=False,
    confidence_transform="zscore",
)

# ============================================================================
# STAGE 7: Add ontology IDs to predictions (before filtering)
# ============================================================================
xenium, _, _ = add_ontology_ids(
    xenium,
    source_col="cell_type",
    target_col="cell_type_ontology_term_id",
    skip_if_exists=False,
)

# ============================================================================
# STAGE 8: Generate plots (shows all cells with ontology labels)
# ============================================================================
# generate_annotation_plots() - low-level users must call this manually

# ============================================================================
# STAGE 9: Apply confidence threshold (last step)
# ============================================================================
xenium = filter_low_confidence(
    xenium,
    label_column="cell_type",
    confidence_column="cell_type_confidence",
    threshold=0.8,
    unassigned_label="Unassigned",
)

Custom Label Workflows¶

For datasets with complex author-defined labels (e.g., "F-0: PRG4+ CLIC5+ lining"), preprocess externally then use the low-level API:

# 1. Apply your label mapping before calling SpatialCore
mapping = {"F-0: PRG4+ CLIC5+ lining": "Lining fibroblast", ...}
combined.obs["cell_type_clean"] = combined.obs["original_label"].map(mapping).fillna(combined.obs["original_label"])

# 2. Balance and train on your clean labels (skip CL ID grouping)
balanced = subsample_balanced(combined, label_column="cell_type_clean", group_by_column=None)
result = train_celltypist_model(balanced, label_column="cell_type_clean")

# 3. Optionally add ontology IDs with a custom index
adata, _, _ = add_ontology_ids(adata, index_path="my_merged_index.json")

Use this pattern when author labels are cluster IDs with markers or domain-specific terms not in Cell Ontology. Use train_and_annotate() for standard workflows with CellxGene-compliant output.

Phase 3: Plotting & Validation¶

Phase 3 generates standard validation plots to assess annotation quality.

`generate_annotation_plots()`¶

Generate all validation plots in one call.

In train_and_annotate(), plot generation is best-effort (errors are logged and the pipeline continues). When calling generate_annotation_plots() directly, exceptions propagate except for the DEG insufficiency case described below.

def generate_annotation_plots(
    adata: AnnData,
    label_column: str = "cell_type",
    confidence_column: str = "cell_type_confidence",
    output_dir: Optional[Union[str, Path]] = None,
    prefix: str = "celltyping",
    confidence_threshold: float = 0.8,
    markers: Optional[Dict[str, List[str]]] = None,
    n_deg_genes: int = 10,
    spatial_key: str = "spatial",
    source_label_column: Optional[str] = None,
    ontology_name_column: Optional[str] = None,
    ontology_id_column: Optional[str] = None,
) -> Dict:

Output files:

Plot	Filename	Description
DEG Heatmap	`{prefix}_deg_heatmap.png`	Top N DEGs per cell type
2D Validation	`{prefix}_2d_validation.png`	Confidence vs marker (GMM-3)
Confidence	`{prefix}_confidence.png`	Spatial + jitter with threshold
Ontology Table	`{prefix}_ontology_mapping.png`	Mapping statistics

Notes:

DEG heatmap requires at least 2 cell types with >= 10 cells each. If not met, the DEG heatmap is skipped with a warning.
2D validation uses canonical markers. If no markers are found (or GMM fails for all types), the summary is empty and a placeholder figure is returned.
Per-cell-type GMM failures warn and that cell type is skipped in the 2D plot.

Returns:

{
    "figures": {
        "deg_heatmap": Figure,
        "2d_validation": Figure,
        "confidence": Figure,
        "ontology_mapping": Figure,
    },
    "summary": pd.DataFrame,  # 2D validation summary
    "paths": {
        "deg_heatmap": Path,
        "2d_validation": Path,
        "confidence": Path,
        "ontology_mapping": Path,
    },
}

If a plot is skipped (e.g., DEG heatmap due to insufficient cell types), the corresponding figure/path entry may be None.

Individual Plot Functions¶

`plot_deg_heatmap()`¶

DEG heatmap with top marker genes per cell type.

def plot_deg_heatmap(
    adata: AnnData,
    label_column: str,
    n_genes: int = 5,
    method: str = "wilcoxon",
    layer: Optional[str] = None,
    figsize: Optional[Tuple[float, float]] = None,
    cmap: str = "viridis",
    save: Optional[Union[str, Path]] = None,
    title: Optional[str] = None,
) -> Figure:

`plot_2d_validation()`¶

2D marker validation with GMM-3 thresholding.

def plot_2d_validation(
    adata: AnnData,
    label_column: str,
    confidence_column: str,
    markers: Optional[Dict[str, List[str]]] = None,
    confidence_threshold: float = 0.8,
    min_cells_per_type: int = 15,
    n_components: int = 3,  # GMM-3 for trimodal spatial data
    ncols: int = 4,
    figsize_per_panel: Tuple[float, float] = (3, 3),
    save: Optional[Union[str, Path]] = None,
) -> Tuple[Figure, pd.DataFrame]:

Color scheme:

Red: Low confidence (uncertain)
Green: High confidence only
Yellow/Gold: High confidence + high marker (strongly validated)

`plot_celltype_confidence()`¶

Spatial confidence + jitter plot.

def plot_celltype_confidence(
    adata: AnnData,
    label_column: str,
    confidence_column: str,
    spatial_key: str = "spatial",
    threshold: float = 0.8,
    max_cell_types: int = 20,
    figsize: Tuple[float, float] = (14, 6),
    save: Optional[Union[str, Path]] = None,
) -> Figure:

Two-panel layout:

Left: Spatial scatter colored by confidence (RdYlGn colormap)
Right: Jitter plot (cell type on Y, confidence on X) with threshold line

`plot_ontology_mapping()`¶

Ontology mapping table visualization.

def plot_ontology_mapping(
    adata: AnnData,
    source_label_column: str,
    ontology_name_column: str,
    ontology_id_column: str,
    mapping_table: Optional[pd.DataFrame] = None,
    title: Optional[str] = None,
    figsize: Tuple[float, float] = (14, 8),
    save: Optional[Union[str, Path]] = None,
) -> Figure:

Tier colors:

Green: Tier 0 (pattern match, score ~0.95)
Blue: Tier 1 (exact match, score 1.0)
Orange: Tier 2 (token match, score 0.60-0.85)
Red: Tier 3 (word overlap, score 0.5-0.7)
Gray: Unmapped

API Summary¶

Phase 1: Data Acquisition¶

Function	Purpose
`acquire_reference()`	Download from CellxGene/Synapse → store to local/cloud
`resolve_uri_to_local()`	Resolve URI to local path (download if needed)
`download_cellxgene_reference()`	Direct CellxGene dataset download
`query_cellxgene_census()`	CellxGene query with filters
`download_synapse_reference()`	Direct Synapse download
`list_available_datasets()`	List predefined CellxGene datasets

Phase 2: Training & Annotation¶

Function	Purpose
`train_and_annotate()`	Complete pipeline in one call
`train_and_annotate_config()`	Config-driven version
`TrainingConfig`	YAML-serializable configuration
`get_panel_genes()`	Extract gene list from spatial data
`combine_references()`	Load + normalize + filter + concatenate references
`DEFAULT_EXCLUDE_LABELS`	Default ambiguous labels to filter
`add_ontology_ids()`	Map labels to CL IDs
`has_ontology_ids()`	Check existing CL ID coverage
`subsample_balanced()`	Source-aware balanced subsampling
`train_celltypist_model()`	Train custom CellTypist model
`annotate_celltypist()`	Apply model with z-score confidence
`filter_low_confidence()`	Mark low-confidence as Unassigned
`filter_low_count_types()`	Mark rare types as Low_count
`transform_confidence()`	Z-score confidence transformation

Phase 3: Plotting & Validation¶

Function	Purpose
`generate_annotation_plots()`	All validation plots in one call
`plot_deg_heatmap()`	DEG heatmap with top markers
`plot_2d_validation()`	GMM-3 marker validation
`plot_celltype_confidence()`	Spatial + jitter confidence
`plot_ontology_mapping()`	Ontology mapping table
`plot_marker_heatmap()`	Marker expression heatmap
`plot_marker_dotplot()`	Marker expression dotplot

Core Utilities¶

Function	Module	Purpose
`load_ensembl_to_hugo_mapping()`	`core.utils`	Load gene ID mapping
`normalize_gene_names()`	`core.utils`	Ensembl → HUGO conversion
`check_normalization_status()`	`core.utils`	Detect log1p(10k) status
`ensure_normalized()`	`annotation.loading`	Normalize to log1p(10k) with validation
`load_adata_backed()`	`annotation.loading`	Memory-efficient h5ad loading
`load_ontology_index()`	`annotation.ontology`	Load CL ontology index

Utilities¶

Expression Normalization Detection¶

The Problem¶

CellTypist requires log1p(10k) normalized data. Detecting whether data is properly normalized is critical but challenging:

Data State	Looks Like	Risk if Misdetected
Raw counts	Integers, max > 100	Double-normalization if mistaken for log
log1p(10k)	max < 15, mean < 6	No action needed
log1p(CPM)	max < 15, mean < 10	Wrong scale, predictions skewed
Z-scored	Negative values	Catastrophic failure if normalized
Embeddings	Floats, various ranges	Not expression data at all

The core issue: Simple heuristics like max < 20 and mean < 5 cannot distinguish log1p(10k) from log1p(CPM) — both pass these checks but have 100× different scales.

Our Solution: Robust Multi-Source Detection¶

SpatialCore uses a strict, no-fallback detection pipeline:

Phase 1: Search for Raw Counts (Integer Test)

Check in priority order:

adata.layers["counts"]
adata.layers["raw_counts"]
adata.layers["raw"]
adata.raw.X
adata.X

Integer Test (with floating-point tolerance):

Sample 10,000 non-zero values
Check: |value - round(value)| < 1e-6
Pass: >95% of values are integer-like
Handles precision issues like 1.0000000000000002

If raw counts found → SAFE PATH: normalize from raw

Phase 2: Verify X is log1p(10k) via expm1 Reversal

Key insight: If X = log1p(counts / total * target_sum), then expm1(X).sum(axis=1) ≈ target_sum

Verification:

Reverse log1p: reversed = expm1(X_sample)
Compute row sums: row_sums = reversed.sum(axis=1)
Check median: 8,000 < median(row_sums) < 12,000 → log1p_10k
Check median: 800,000 < median < 1,200,000 → log1p_cpm

If verified log1p_10k → SAFE PATH: use as-is If log1p_cpm or unknown → ERROR (unless unsafe_force=True)

`check_normalization_status()` Return Values¶

from spatialcore.core.utils import check_normalization_status

status = check_normalization_status(adata)

status["raw_source"]      # "layers/counts", "raw.X", "X", or None
status["x_state"]         # "raw", "log1p_10k", "log1p_cpm", "log1p_other",
                          # "linear", "negative", "unknown"
status["x_target_sum"]    # Estimated target sum (e.g., 10000.0, 1000000.0)
status["is_usable"]       # True if raw available OR X is log1p_10k
status["has_log1p_uns"]   # True if adata.uns contains "log1p" key
status["stats"]           # Dict with mean, max, min, fraction_integer

`ensure_normalized()` with `unsafe_force`¶

The normalization function raises errors for unverified data states:

from spatialcore.annotation import ensure_normalized

# Normal usage - errors if data state cannot be verified
adata = ensure_normalized(adata)

# If raw counts in layer, normalizes from there
# If X is already log1p_10k, no change
# If X is log1p_cpm with no raw → ValueError!

The unsafe_force Parameter:

For edge cases where you have manually verified your data:

# DANGEROUS: Force normalization on unverified data
adata = ensure_normalized(adata, unsafe_force=True)

Warning: unsafe_force=True may produce incorrect results

Data is already log-transformed (double-logging destroys signal)
Data uses a different target sum (e.g., CPM vs 10k)
Data contains negative values (z-scored/batch-corrected)
Data is latent space embeddings (not expression)

When unsafe_force=True is used, a prominent warning is logged.

Decision Matrix¶

`raw_source`	`x_state`	Action
Found (any location)	Any	Normalize from raw → SAFE
None	`log1p_10k` (verified)	Use X as-is → SAFE
None	`raw`	Normalize X directly → SAFE
None	`log1p_cpm`	ERROR (wrong scale, no raw)
None	`log1p_other`	ERROR (unknown scale)
None	`negative`	ERROR (z-scored data)
None	`unknown`	ERROR (cannot determine)

Best Practices¶

Always provide raw counts when possible — store in adata.layers["counts"]
Don't rely on unsafe_force in production pipelines
Check status before normalization to understand your data:

from spatialcore.core.utils import check_normalization_status

status = check_normalization_status(adata)
print(f"Raw source: {status['raw_source']}")
print(f"X state: {status['x_state']}")
print(f"Usable: {status['is_usable']}")

if not status["is_usable"]:
    print(f"Problem: X is {status['x_state']}, no raw counts found")

Ontology Mapping¶

Overview¶

The add_ontology_ids() function maps cell type labels to Cell Ontology (CL) IDs using a 4-tier matching system:

INPUT: "CD4+ T cells"
           │
           ▼
┌──────────────────────────────────────────────────────────┐
│ TIER 0: Pattern Canonicalization                         │
│ "CD4+ T cells" → "cd4-positive, alpha-beta t cell"       │
│ Score: 0.95                                              │
└──────────────────────────────────────────────────────────┘
           │
           ▼
┌──────────────────────────────────────────────────────────┐
│ TIER 1: Exact Match                                      │
│ "cd4-positive, alpha-beta t cell" → CL:0000624           │
│ Score: 1.0 (exact) or 0.95 (via pattern)                 │
└──────────────────────────────────────────────────────────┘
           │
           ▼ (if no exact match)
┌──────────────────────────────────────────────────────────┐
│ TIER 2: Token-Based Match                                │
│ Extracts biological tokens (CD markers, core words)      |
│ Score: 0.60-0.85                                         │
└──────────────────────────────────────────────────────────┘
           │
           ▼ (if no token match)
┌──────────────────────────────────────────────────────────┐
│ TIER 3: Word Overlap (Jaccard Similarity)                │
│ Score: 0.50-0.70                                         │
└──────────────────────────────────────────────────────────┘
           │
           ▼
OUTPUT: CL:0000624, "cd4-positive, alpha-beta t cell"

Files Involved¶

File	Location	Purpose
`ontology_index.json`	`src/spatialcore/data/ontology_mappings/`	Pre-built CL term lookup dictionary
`patterns.py`	`src/spatialcore/annotation/`	Regex patterns for Tier 0 canonicalization

Customizing the Ontology Index¶

The ontology_index.json file contains a dictionary of Cell Ontology terms for exact matching:

{
  "metadata": {
    "cl_terms": 2500,
    "created": "2026-01-15"
  },
  "cl": {
    "b cell": {"id": "CL:0000236", "name": "B cell"},
    "t cell": {"id": "CL:0000084", "name": "T cell"},
    "macrophage": {"id": "CL:0000235", "name": "macrophage"},
    "cd4-positive, alpha-beta t cell": {"id": "CL:0000624", "name": "CD4-positive, alpha-beta T cell"}
  }
}

To add a custom term:

Open src/spatialcore/data/ontology_mappings/ontology_index.json
Add your term to the "cl" dictionary (key must be lowercase)
Look up valid CL IDs at: https://www.ebi.ac.uk/ols/ontologies/cl

Customizing Pattern Matching¶

The patterns.py file contains regex patterns that canonicalize common label variations before ontology lookup (Tier 0 matching).

File location: src/spatialcore/annotation/patterns.py

Pattern format:

CELL_TYPE_PATTERNS = {
    r"regex_pattern": "canonical cl term name",
    ...
}

How it works:

Input label is lowercased
Patterns are checked in order (first match wins)
If a pattern matches, the canonical term is used for ontology lookup
The canonical term should exist in ontology_index.json

Example: Adding an abbreviation

To map "Mph" (common abbreviation for macrophage):

# In patterns.py, add to the Macrophages section:
r"macrophages?|\bmph\b": "macrophage",

\b = word boundary (prevents matching "lymph" which contains "mph")
| = OR operator

Common regex patterns:

Pattern	Meaning	Example Match
`\b`	Word boundary	`\bnk\b` matches "NK" but not "unk"
`.*`	Any characters	`cd4.*t` matches "CD4+ T cell"
`\s*`	Optional whitespace	`t\s*cell` matches "T cell" or "Tcell"
`?`	Optional character	`cells?` matches "cell" or "cells"
`\\|`	OR	`nk\\|natural killer` matches either
`^`	Start of string	`^t\s*cell` only matches if label starts with "t cell"
`+`	One or more	`cd\d+` matches "cd4", "cd8", "cd19", etc.

Testing your pattern:

from spatialcore.annotation.patterns import get_canonical_term

print(get_canonical_term("Club (nasal)"))      # Should return: "club cell"
print(get_canonical_term("Migratory DCs"))     # Should return: "migratory dendritic cell"

Reviewing Unmapped Labels¶

After running add_ontology_ids(), check the mapping results:

from spatialcore.annotation import add_ontology_ids

adata, mappings, result = add_ontology_ids(
    adata,
    source_col="cell_type",
    save_mapping="./output/",
)

# View the mapping table
print(result.table)

# Check unmapped labels
unmapped = result.table[result.table["match_tier"] == "unmapped"]
print(f"Unmapped labels: {unmapped['input_label'].tolist()}")

Canonical Markers¶

File: src/spatialcore/data/markers/canonical_markers.json

A convenience file containing marker genes for common cell types:

{
  "markers": {
    "t cell": ["CD3D", "CD3G", "CD3E", "IL7R", "TRBC1"],
    "macrophage": ["CD163", "CD68", "MARCO", "CSF1R", "MERTK"],
    "fibroblast": ["COL1A1", "DCN", "PDGFRA", "VIM", "LUM"]
  }
}

Usage:

from spatialcore.annotation import load_canonical_markers

markers = load_canonical_markers()
print(markers.get("macrophage"))  # ['CD163', 'CD68', 'MARCO', ...]

Behavior notes:

If the canonical markers file is missing or empty, marker-based validation raises an error.
Cell types without available markers in the data are skipped during 2D validation.

CellTypist Source Modification for Spatial Data¶

Required: CellTypist Normalization Tolerance Patch

CellTypist's default validation expects data normalized to exactly 10,000 counts per cell (tolerance of ±1). Spatial transcriptomics platforms (Xenium, CosMx) often normalize to slightly different target sums (e.g., ~10,751). This causes CellTypist annotation to fail even when the data is correctly normalized.

SpatialCore requires a local modification to CellTypist's classifier.py.

The Problem¶

Check	Location	Default	Issue
Max value check	`classifier.py:310,314`	`> 9.22` (log1p(10000))	Rejects data with target_sum > 10,000
Target sum warning	`classifier.py:326`	`> 1`	Warns on any deviation from 10,000

For spatial data normalized to ~10,751 counts per cell: - log1p(10751) ≈ 9.28 exceeds the 9.22 threshold → ValueError - Even valid spatial data fails annotation

The Fix¶

Modify celltypist/classifier.py in your Python environment:

File location:

{your_conda_env}/Lib/site-packages/celltypist/classifier.py

Changes (3 lines):

Line	Original	Modified
310	`self.adata.X[:1000].max() > 9.22`	`self.adata.X[:1000].max() > 10.5`
314	`self.adata.raw.X[:1000].max() > 9.22`	`self.adata.raw.X[:1000].max() > 10.5`
326	`np.abs(np.expm1(self.indata[0]).sum()-10000) > 1`	`np.abs(np.expm1(self.indata[0]).sum()-10000) > 5001`

What this allows: - Max value threshold: 10.5 = log1p(36000) — accepts highly expressed genes in spatial data - Target sum warning: Only warns if deviation exceeds 5,000 from 10,000 (i.e., outside 5k-15k range)

Reapplying After CellTypist Update¶

If you reinstall or upgrade CellTypist, you must reapply this patch:

# Find your celltypist installation
import celltypist
print(celltypist.__file__)  # Shows path to __init__.py
# classifier.py is in the same directory

Then edit classifier.py with the changes above.

Error Handling¶

Common Errors¶

Error	Cause	Solution
`Cannot safely normalize data`	No raw counts found and X is not verified log1p_10k	Provide raw counts in `adata.layers["counts"]` or use `unsafe_force=True`
`Cannot prepare data for CellTypist`	No raw counts found and X is not verified log1p_10k	Provide raw counts in `.X`, `.layers["counts"]`, `.raw.X`, or use pre-normalized log1p(10k) data
`No shared genes found`	Gene format mismatch	Check Ensembl vs HUGO format
`Label column not found`	Wrong column name	List columns with `list(adata.obs.columns)`
`majority_voting=True requires a valid cluster column`	Missing or invalid cluster column	Provide `over_clustering` or add a cluster column (e.g., `leiden`) to `adata.obs`
`batch_size requires majority_voting=False`	Majority voting enabled with batching	Set `majority_voting=False` or `batch_size=None`
`Gene subset requires re-normalization after subsetting`	Overlap genes differ and data is not raw or log1p(10k)	Provide raw counts or ensure `adata.X` is log1p(10k) before annotation
`No marker genes found in data`	Canonical markers missing/empty or no marker overlap	Provide a markers dict or ensure marker genes are present
`No ontology match`	Novel cell type names	Review unmapped in `_missed.json`
`ImportError: cellxgene-census`	Missing optional dep	`pip install cellxgene-census`
`ImportError: boto3`	Missing S3 dependency	`pip install boto3`
`ImportError: google-cloud-storage`	Missing GCS dependency	`pip install google-cloud-storage`

Cloud Authentication¶

import os

# Google Cloud Storage
os.environ["GOOGLE_APPLICATION_CREDENTIALS"] = "/path/to/service-account.json"

# Amazon S3
os.environ["AWS_ACCESS_KEY_ID"] = "your-key"
os.environ["AWS_SECRET_ACCESS_KEY"] = "your-secret"

# Synapse
os.environ["SYNAPSE_AUTH_TOKEN"] = "your-token"

Version History¶

Version	Date	Changes
3.6	2026-01-21	CellTypist patch required: Documented required modification to `celltypist/classifier.py` for spatial data compatibility. Changed normalization tolerance from 10k±1 to 5k-15k range to accommodate platform-specific target sums.
3.5	2026-01-20	Breaking change: Removed `norm_layer` parameter from `annotate_celltypist()`. Function now auto-detects input data state using `check_normalization_status()` and normalizes via `ensure_normalized()`. Accepts raw counts in `.X`, `.layers['counts']`, `.raw.X`, or pre-normalized log1p(10k) data.
3.4	2026-01-19	Confidence filtering moved to after plot generation; plots now show all cells
3.3	2026-01-18	Added `target_proportions` parameter to `subsample_balanced()` for handling pure/enriched cell type references (FACS, sorted populations)
3.2	2026-01-18	Robust normalization detection: layer search, integer test with tolerance, expm1 target sum verification, `unsafe_force` parameter
3.1	2026-01-17	Added `exclude_labels` and `filter_min_cells` to `combine_references()`
3.0	2026-01-16	Three-phase architecture, `acquire_reference()`, gene utils moved to `core/utils.py`
2.0	2026-01-15	CellxGene column naming, `group_by_column`, `skip_if_exists`
1.0	2026-01-10	Initial release with source-aware balancing

Pipeline & API Reference¶

Architecture¶

Phase 1: Data Acquisition¶

acquire_reference()¶

resolve_uri_to_local()¶

Available CellxGene Datasets¶

Phase 2: Training & Annotation¶

High-Level API: train_and_annotate()¶

Config-Driven API: TrainingConfig¶

Low-Level Functions¶

combine_references()¶

subsample_balanced()¶

Cell Type Granularity for Spatial Data¶

train_celltypist_model()¶

annotate_celltypist()¶

Complete Low-Level Example¶

Custom Label Workflows¶

Phase 3: Plotting & Validation¶

generate_annotation_plots()¶

Individual Plot Functions¶

plot_deg_heatmap()¶

plot_2d_validation()¶

plot_celltype_confidence()¶

plot_ontology_mapping()¶

API Summary¶

Phase 1: Data Acquisition¶

Phase 2: Training & Annotation¶

Phase 3: Plotting & Validation¶

Core Utilities¶

Utilities¶

Expression Normalization Detection¶

The Problem¶

Our Solution: Robust Multi-Source Detection¶

check_normalization_status() Return Values¶

ensure_normalized() with unsafe_force¶

Decision Matrix¶

Best Practices¶

Ontology Mapping¶

Overview¶

Files Involved¶

Customizing the Ontology Index¶

Customizing Pattern Matching¶

Reviewing Unmapped Labels¶

Canonical Markers¶

CellTypist Source Modification for Spatial Data¶

The Problem¶

The Fix¶

Reapplying After CellTypist Update¶

Error Handling¶

Common Errors¶

Cloud Authentication¶

Version History¶

`acquire_reference()`¶

`resolve_uri_to_local()`¶

High-Level API: `train_and_annotate()`¶

Config-Driven API: `TrainingConfig`¶

`combine_references()`¶

`subsample_balanced()`¶

`train_celltypist_model()`¶

`annotate_celltypist()`¶

`generate_annotation_plots()`¶

`plot_deg_heatmap()`¶

`plot_2d_validation()`¶

`plot_celltype_confidence()`¶

`plot_ontology_mapping()`¶

`check_normalization_status()` Return Values¶

`ensure_normalized()` with `unsafe_force`¶
